MSI Cubi N ADL-007DE

Intel N100, 4 GB, 128 GB, Intel UHD Graphics
Price in EUR including VAT
71Ratings
  • free shipping
  • Free returns within 30 days
Delivered between Fri, 28.2. and Sat, 1.3.
More than 10 items in stock at supplier

Processor type

Product details

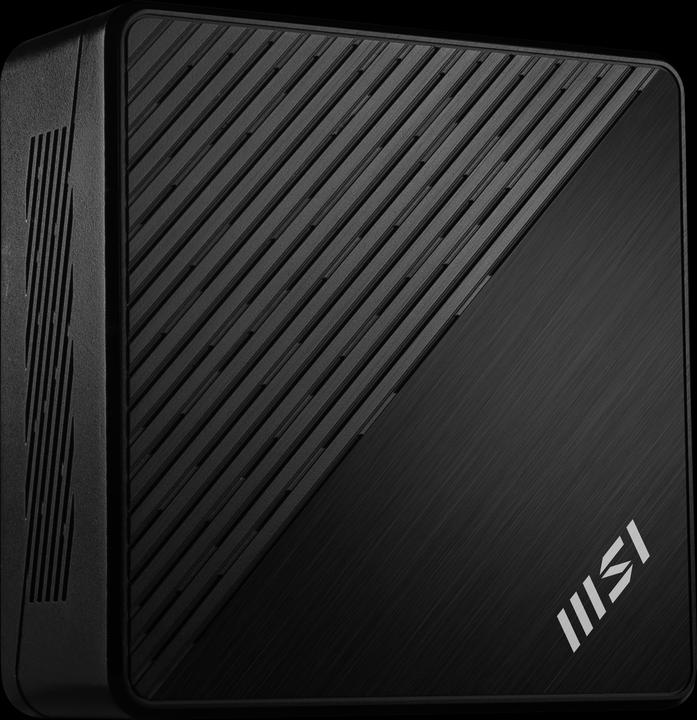

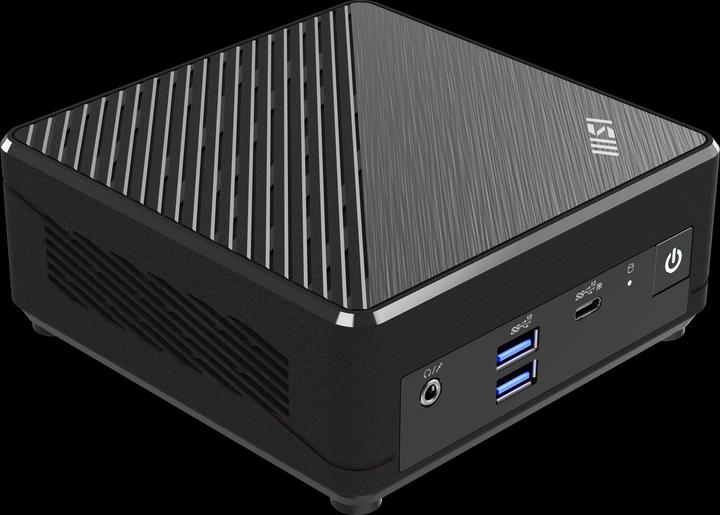

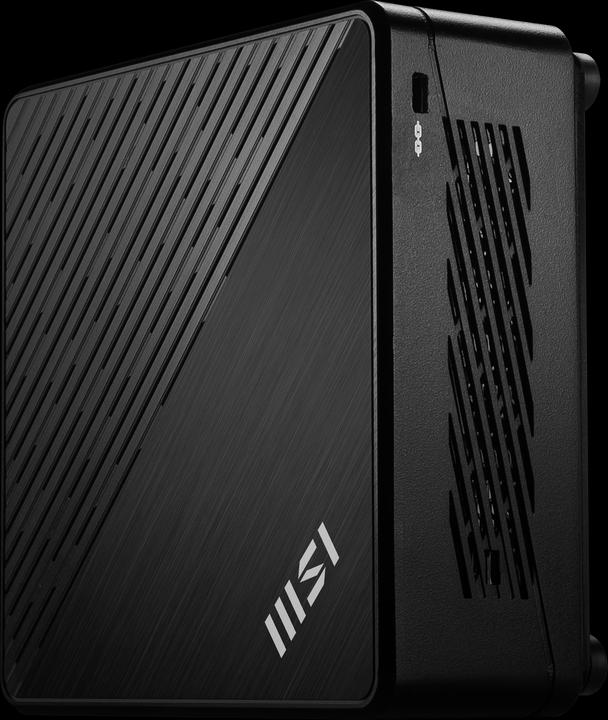

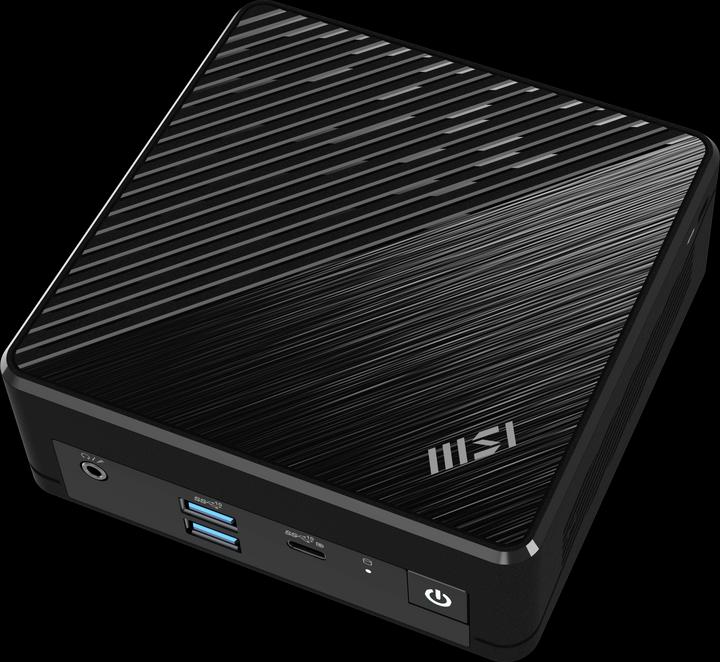

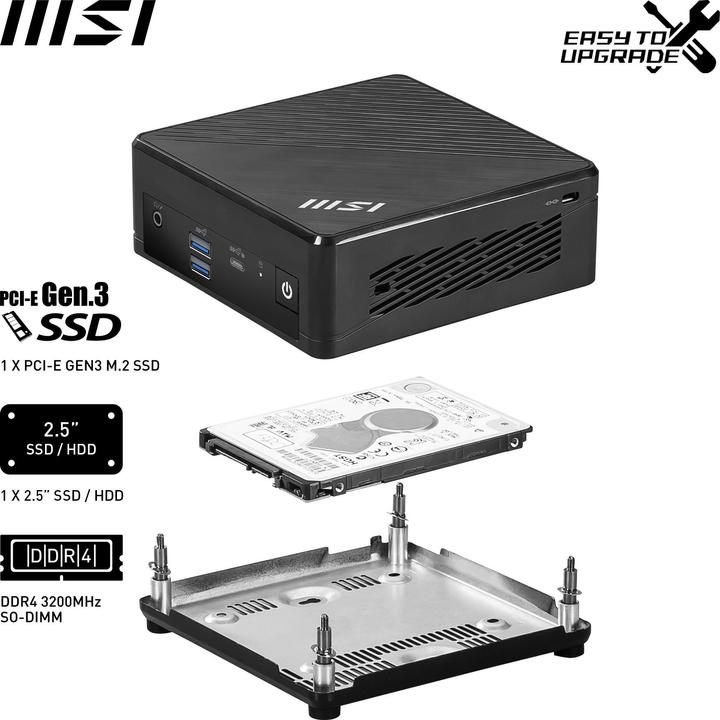

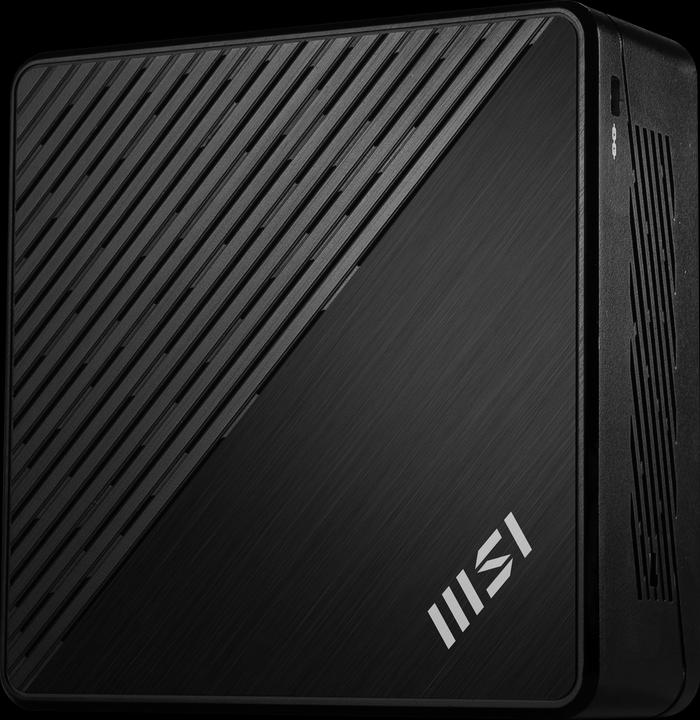

The MSI Cubi N ADL is a powerful desktop PC in miniature format. It is not only suitable as a practical HTPC and for controlling all media applications at home, but also as an office computer and for commercial projects. Unlike a large desktop PC, the Cubi N ADL does not require a fixed place in the room or even a dedicated computer desk - it can be used wherever it is needed most with minimal effort. It can be easily opened and equipped with components to keep the system up to date.

The Cubi N ADL can be equipped with an external power switch to switch it on easily even when it is mounted in a hard-to-reach place.

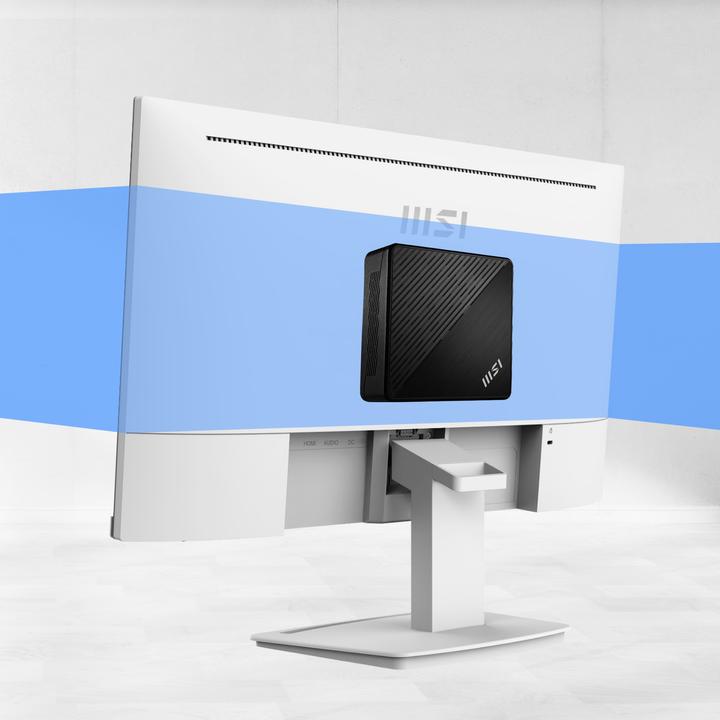

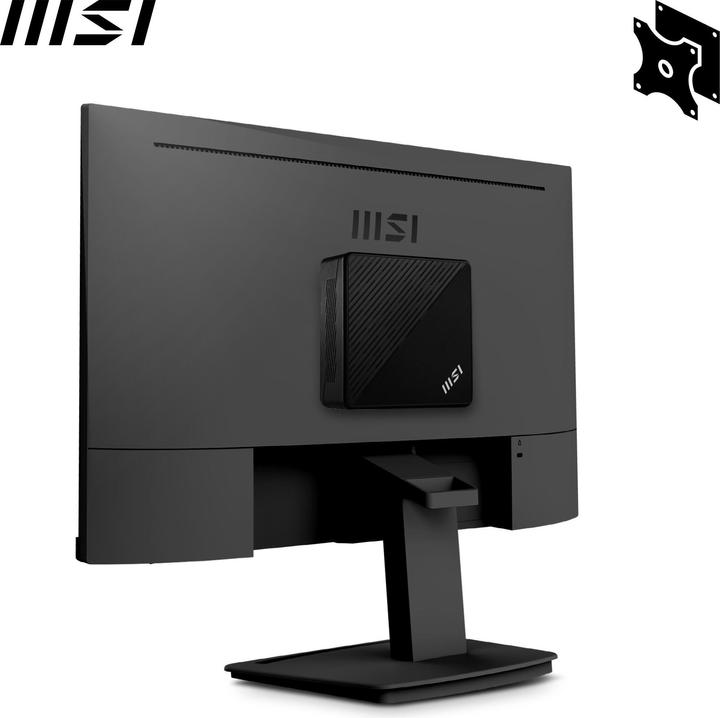

No bigger than the palm of your hand, but still equipped with all the elements of a desktop PC. Thanks to the excellent heat regulation and the quiet fan, the device is barely audible even when in full operation. Thanks to the VESA-compatible design, the PC can be mounted in a space-saving and completely invisible way.

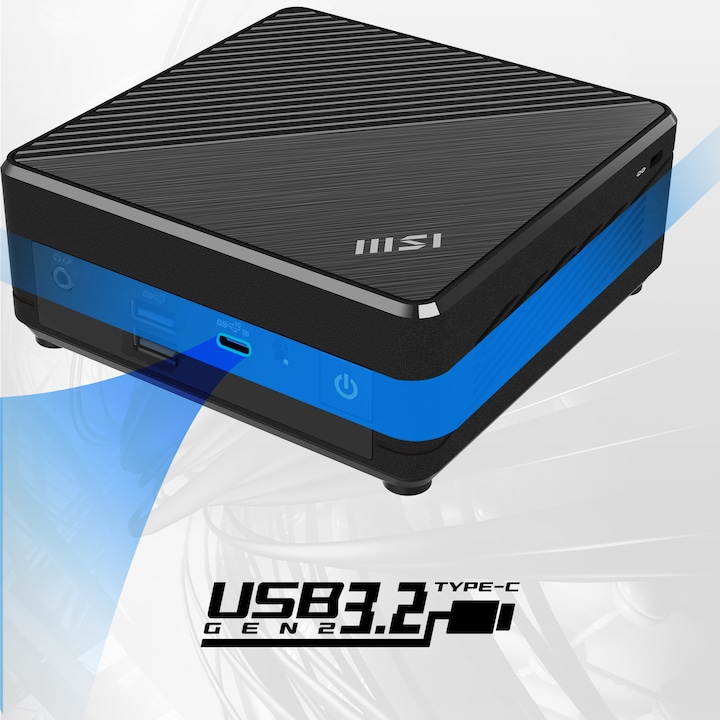

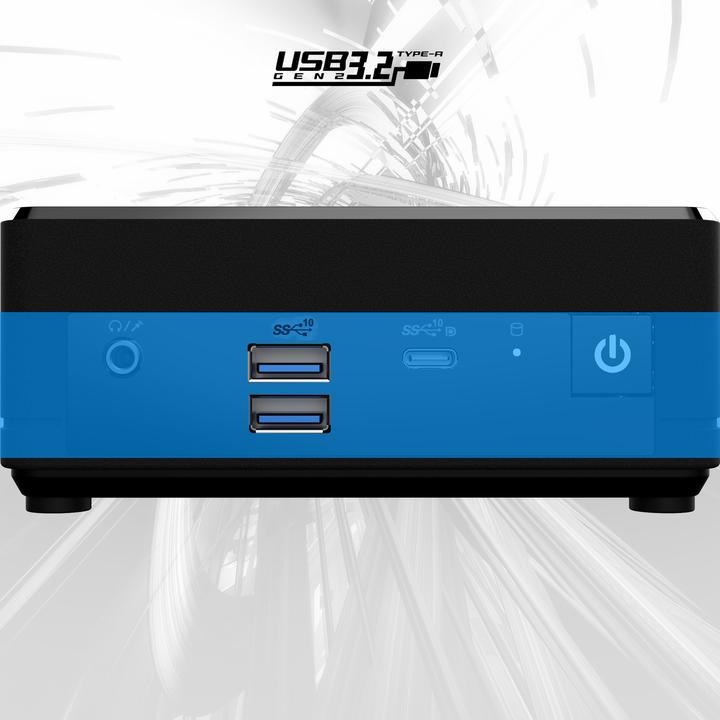

All the performance advantages of a USB 3.2 connection and compatible with the latest external end devices. The TPM 2.0 technology (Trusted Platform Module) was developed to provide hardware-based, security-relevant functions. This allows sensitive data and passwords to be stored with encryption keys for enhanced security.

Key specifications

PC type
Mini PC
Processor family
N-Series
Graphics card model
Intel UHD Graphics
Operating System Version
Windows 11 Pro

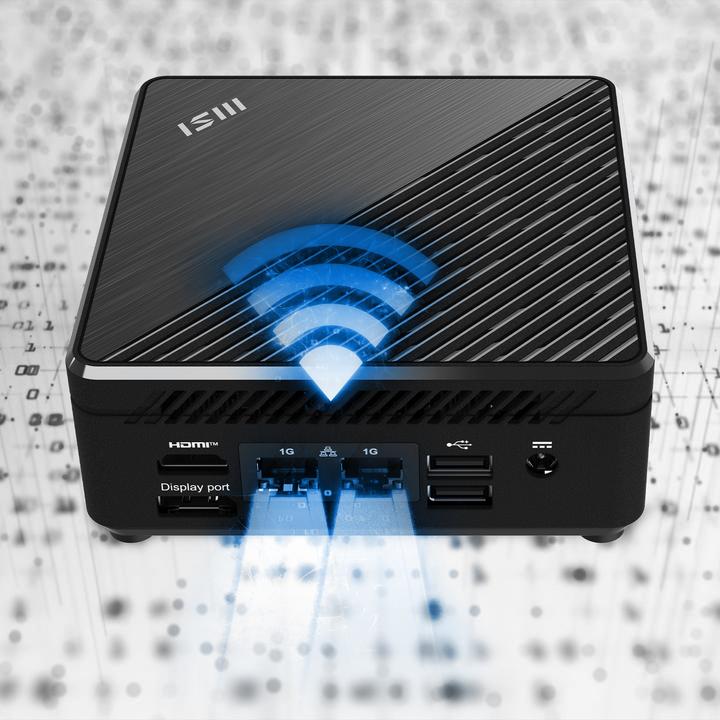

Video connections
DisplayPort (1x),
HDMI (1x)
Exact USB ports
USB-A 2.0 (2x),
USB-A 3.2 Gen 2 (2x),
USB-C 3.2 Gen 2 (1x)
Network connections
RJ45 (2x)
Item number
32559827

General information

Manufacturer
Category
Manufacturer no.
00B0A911-007
Release date
7.2.2024

Colour

Colour group
Black
Exact colour description
Black

Application range

PC type
Mini PC

Operating system

Operating system
Windows
Operating System Version
Windows 11 Pro
Language
English,
French,
German,
Italian
Operating system architecture
64-bit

Processor

Number of processors
1 x
Processor family
N-Series
Processor type
Intel N100
Processor clock frequency
3.40 GHz
Max. turbo clock rate
3.40 GHz
Max. TDP
6 W
Overclock clock frequency
3.40 GHz
Number of processor cores
4 -Core
Max. Turbo Clock frequency Performance Cores
3.40 GHz
Number of threads
4
Cache
6 MB
Processor socket
BGA 1264

Processor cooling properties

Processor cooling type
Air cooled

Memory

Total memory
4 GB
Memory configuration
1 x 4GB
Max. supported memory
16 GB
Memory type
DDR4-RAM
RAM speed
3200 MHz
Set clock frequency
3200 MHz
Memory form factor
SO-DIMM
Number of memory slots
1
Number of free memory slots
0

Data storage controller

Internal connection options
M.2 (1x)

Data storage overview

Disk type
SSD
Total capacity
128 GB
Form factor
M.2

SSD properties

SSD capacity
128 GB

Additional data storage

Further data carrier type
SSD
Storage capacity
128 GB

Motherboard properties

Chipset
Intel SoC

Graphics properties

Graphics hardware
Integrated graphics

Onboard graphics properties

Graphics card model
Intel UHD Graphics

Dedicated graphics card properties

Graphics chip (GPU)
Intel UHD Graphics
Graphics card model
Intel UHD Graphics

Network

Ethernet controller
Realtek RTL8111H
Max. port speed
1000 Mbit/s

Wireless transmission

Wireless transmission
Bluetooth,
Wi-Fi
Bluetooth version
5.0

Wi-Fi

Wi-Fi standard
Wi-Fi 5 / 802.11ac

Audio properties

Chip
Realtek ALC256
Audio channel
2.1 Channel

PC case properties

"Number of 2.5"" drive slots"
1 x
PC form factor
Ultra Slim

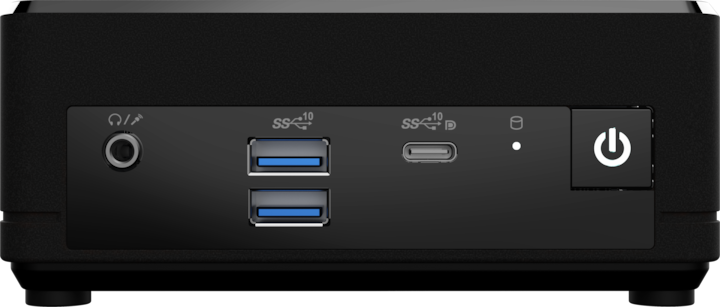

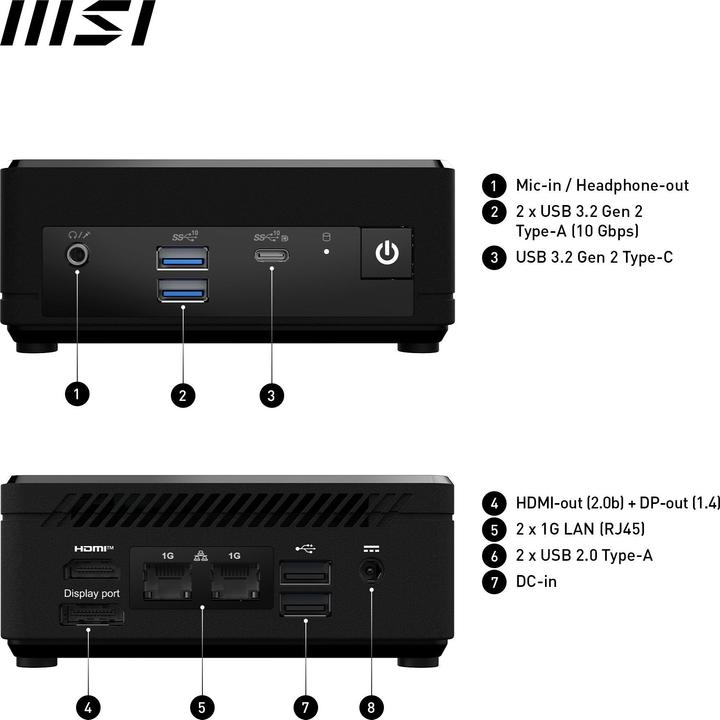

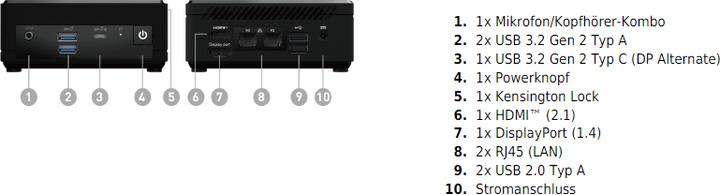

Connections

USB ports
USB-A,
USB-C
Exact USB ports
USB-A 2.0 (2x),
USB-A 3.2 Gen 2 (2x),
USB-C 3.2 Gen 2 (1x)

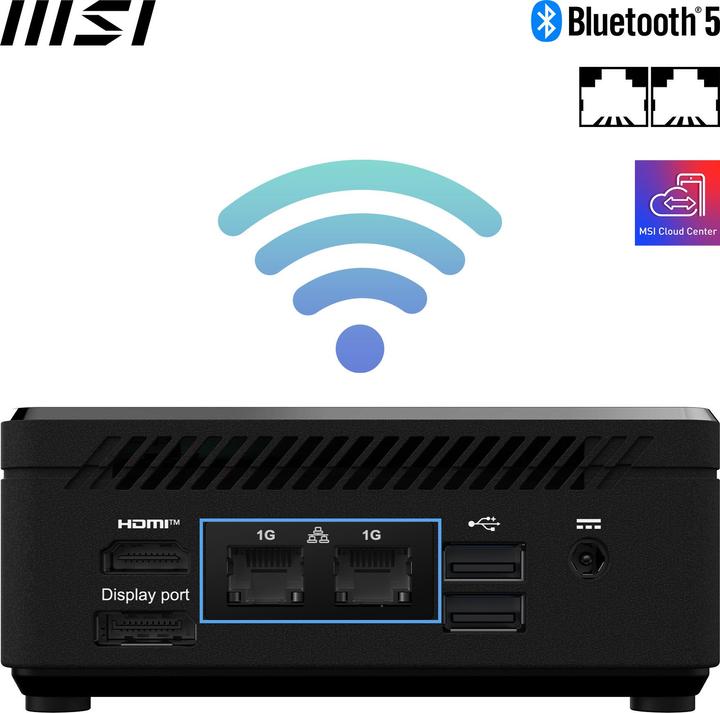

Video connections
DisplayPort (1x),
HDMI (1x)
Network connections
RJ45 (2x)
Audio Connections
Jack 3.5mm (1x)
Data ports
USB 2.0 Type-A (2x),
USB 3.2 Gen 2 (3.1 Gen 2) Type A (1x)

Optical drive properties

Optical drive type
No drive

Power supply properties

Power supply
65 W

Sustainability

Manufacturer commitment
SBTi

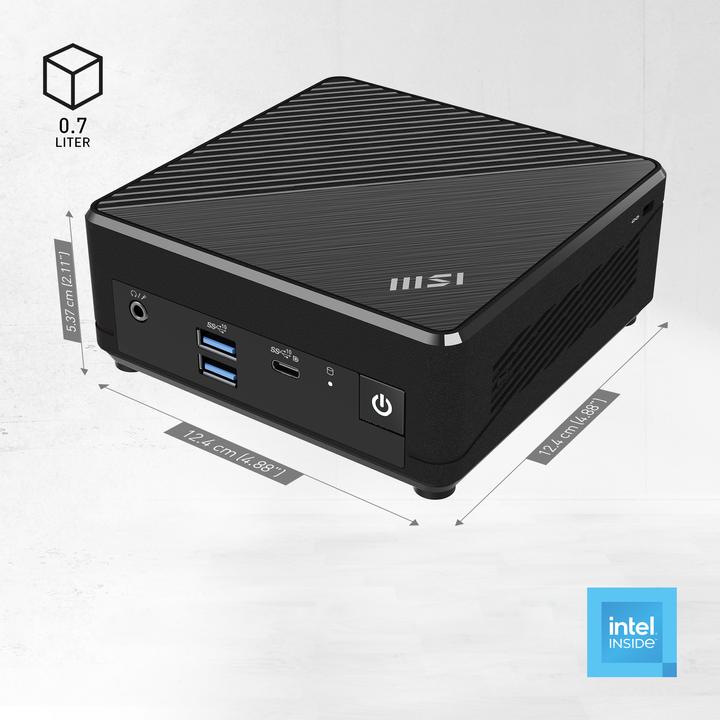

Product dimensions

Length
12.40 cm
Width
12.40 cm
Height
5.37 cm
Weight
0.55 kg

Package dimensions

Length
22.50 cm
Width
21 cm
Height
9.50 cm
Weight
1.32 kg
