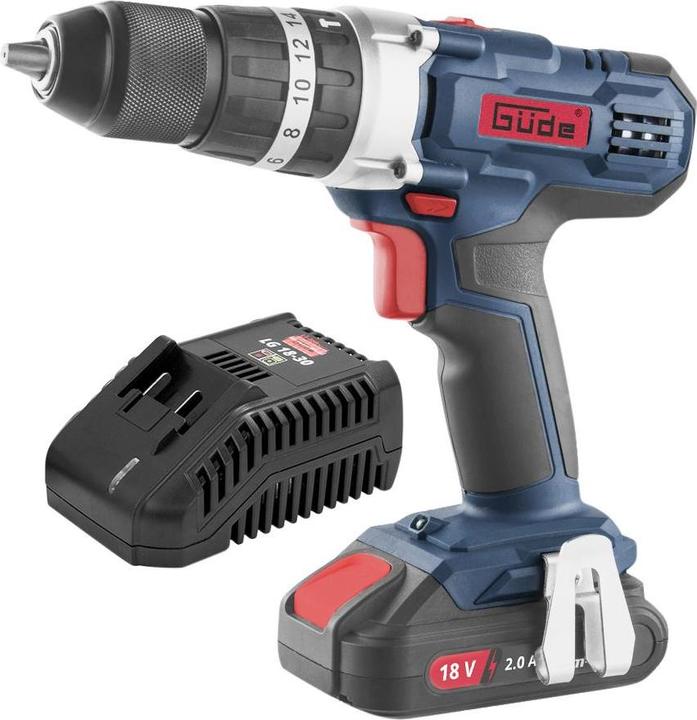

Güde Impact drill BSB 18-201-30K (58504)
Rechargeable battery operatedCurrently out of stock
Product details

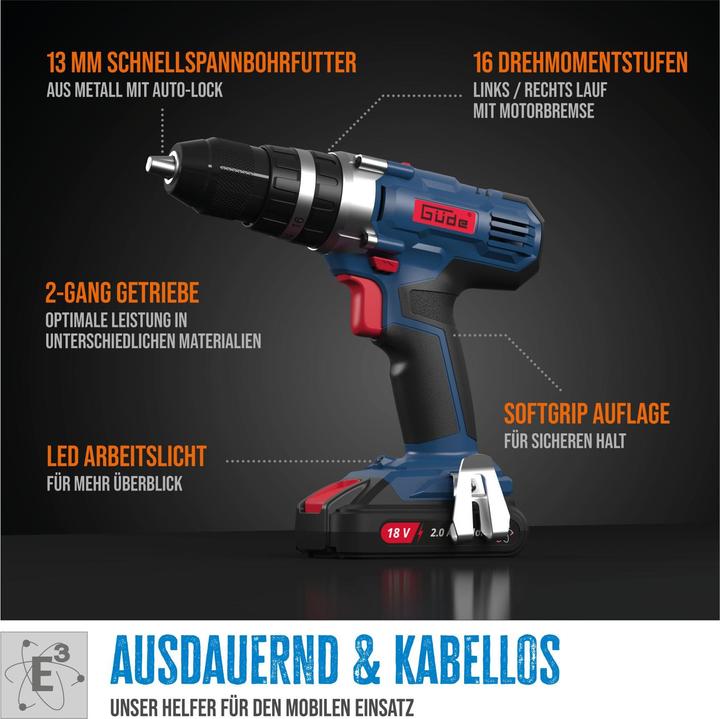

- With E³ 18Volt battery system
- Handy and powerful
- Powerful and efficient impact mechanism
- 2 speeds for optimum use of power in different materials
- 13 mm fast action metal chuck with Auto-Lock
- Handy and powerful
- Powerful and efficient impact mechanism
- 2 speeds for optimum use of power in different materials
- 13 mm fast action metal chuck with Auto-Lock
- Automatic spindle lock

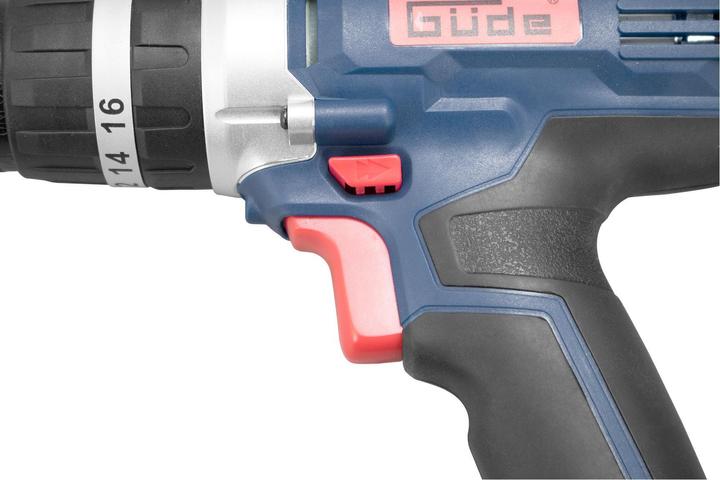

- Electronics with speed control and overload protection
- L/R operation with motor brake

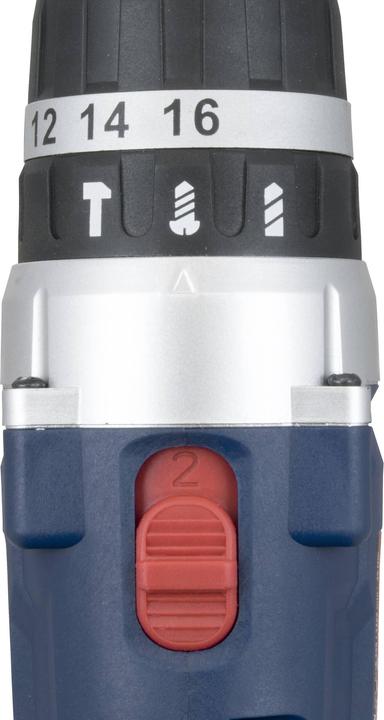

- 16 torque settings
- Integrated LED work light
- Includes 18 Volt / 2.0 Ah lithium battery with single cell monitoring and overload protection
Technical data: Battery voltage
- Battery voltage: 18 Volt Li-Ion
- Battery capacity: 2 Ah
- Battery capacity: 36 Wh
- Battery charging time: 48 min
- Maximum idle speed: 0-350 / 0-1250 1/min
- Charging speed: 0-5250 / 0-18750 1/min
- Maximum torque: 46 Nm
- Torque step: 16
- Minimum chuck width: 2 mm
- Maximum chuck width: 13 mm
- Metal drill chuck: Yes
- Drill bit diameter for wood: 30 mm
- Drill diameter for steel: 12 mm
- Drill bit diameter for stone: 8 mm
- Maximum screw diameter for wood: 8 mm
- Overload protection available: Yes

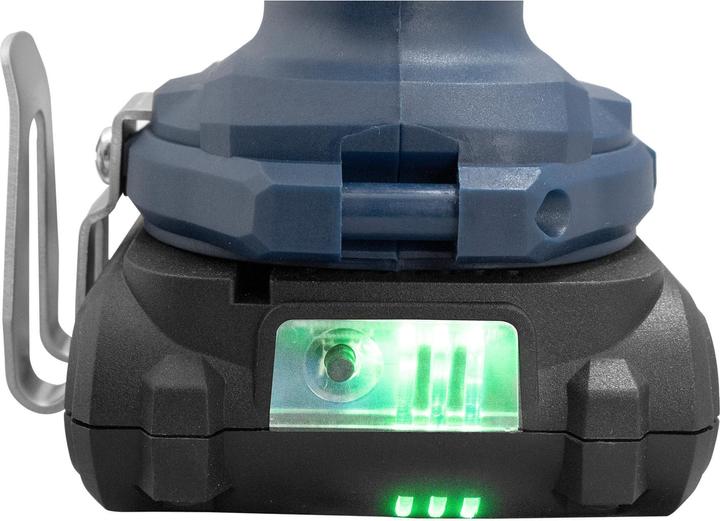

- Battery charge indicator: Yes
- Variable speed: Yes
- Quick stop : Yes
- Spindle lock : Yes
- Belt holder : Yes
- LED work light : Yes
- Weight with battery pack: 1.7 kg
- Weight without battery pack: 1.3 kg
Charger
- Input voltage: 100-240 volts
- Input power: 80 watts
- Charger frequency: 50-60 Hz
- Output voltage: 18 volts
- Output current: 3.0 A
- Charger protection class: II
Dimensions (LxWxH): Approx. 245x 95 x 230 mm
Colour: blue, black, red
Material: metal/plastic
Weight:
- Net weight: 3.1 kg
- Gross weight: 3.3 kg

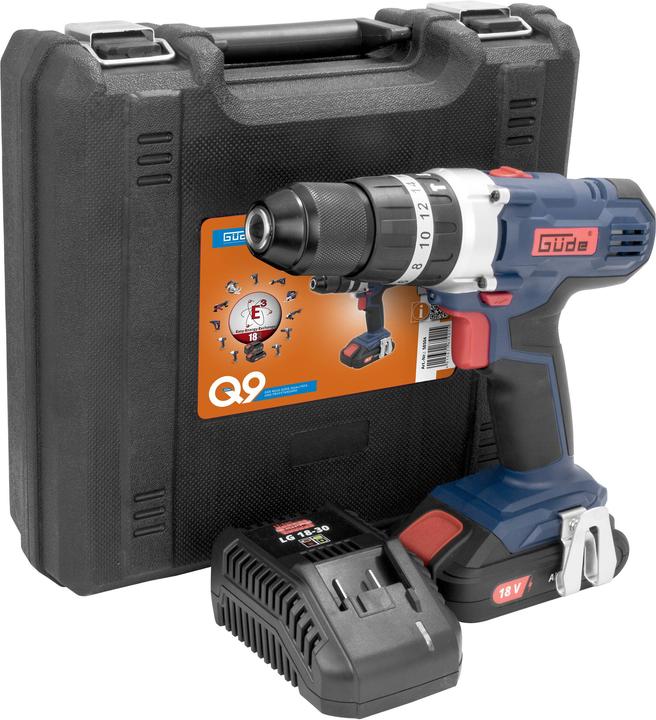

Scope of delivery
- 1 x Battery-operated impact drill BSB 18-201-30K

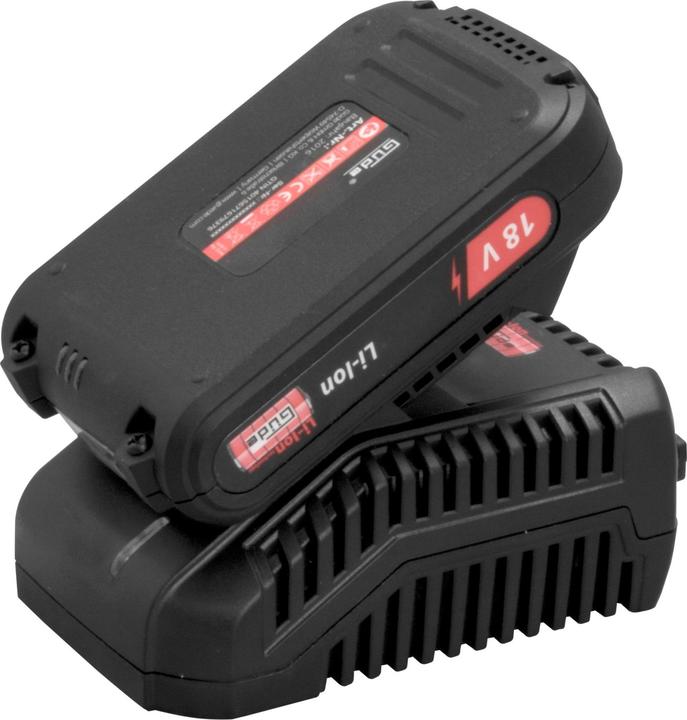

- 1 x quick charger 3.0 A
- 1 x Li-Ion battery 18Volt / 2.0 A

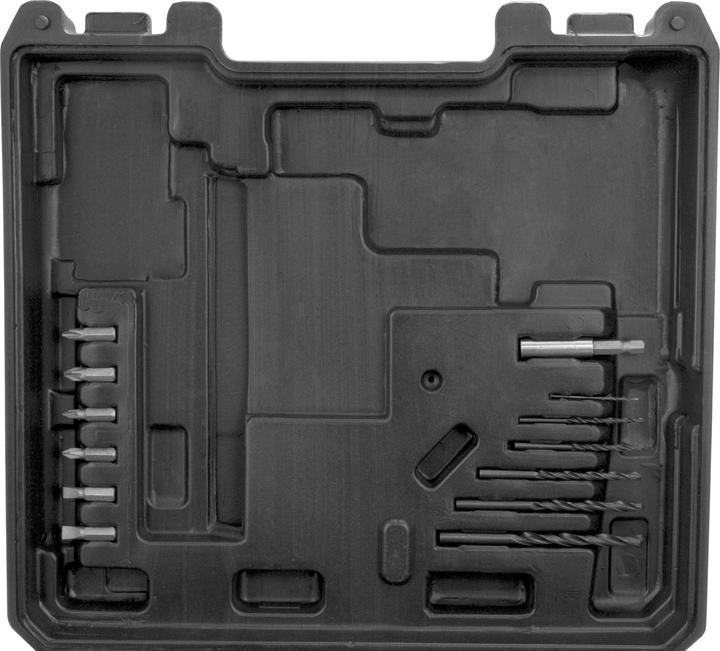

- 1 x Metal loop case
- 1 x 13 piece drill bit Accessories :
- 6 x HSS drills (Ø2.0; Ø2.5; Ø3.0; Ø4.0; Ø5.0; Ø6.0)
- 6 x CR-V bits (SL5; SL6; PH1; PH2; PZ1; PZ2)
- 1 x 55 mm magnetic bit holder.
- Electronics with speed control and overload protection
- L/R operation with motor brake
- 16 torque settings
- Integrated LED work light
- Includes 18 Volt / 2.0 Ah lithium battery with single cell monitoring and overload protection
Technical data: Battery voltage
- Battery voltage: 18 Volt Li-Ion
- Battery capacity: 2 Ah
- Battery capacity: 36 Wh
- Battery charging time: 48 min
- Maximum idle speed: 0-350 / 0-1250 1/min
- Charging speed: 0-5250 / 0-18750 1/min
- Maximum torque: 46 Nm
- Torque step: 16
- Minimum chuck width: 2 mm
- Maximum chuck width: 13 mm
- Metal drill chuck: Yes
- Drill bit diameter for wood: 30 mm
- Drill diameter for steel: 12 mm
- Drill bit diameter for stone: 8 mm
- Maximum screw diameter for wood: 8 mm
- Overload protection available: Yes
- Battery charge indicator: Yes
- Variable speed: Yes
- Quick stop : Yes
- Spindle lock : Yes
- Belt holder : Yes
- LED work light : Yes
- Weight with battery pack: 1.7 kg
- Weight without battery pack: 1.3 kg
Charger
- Input voltage: 100-240 volts
- Input power: 80 watts
- Charger frequency: 50-60 Hz
- Output voltage: 18 volts
- Output current: 3.0 A
- Charger protection class: II
Dimensions (LxWxH): Approx. 245x 95 x 230 mm
Colour: blue, black, red
Material: metal/plastic
Weight:
- Net weight: 3.1 kg
- Gross weight: 3.3 kg
Scope of delivery
- 1 x Battery-operated impact drill BSB 18-201-30K
- 1 x quick charger 3.0 A
- 1 x Li-Ion battery 18Volt / 2.0 A
- 1 x Metal loop case
- 1 x 13 piece drill bit Accessories :
- 6 x HSS drills (Ø2.0; Ø2.5; Ø3.0; Ø4.0; Ø5.0; Ø6.0)
- 6 x CR-V bits (SL5; SL6; PH1; PH2; PZ1; PZ2)
- 1 x 55 mm magnetic bit holder.
| Drilling machine + percussion drilling machine Type | Impact drill screwdriver |
| Weight | 3.10 kg |
| Tool holder | Quick release |
| Max. torque | 46 Nm |
| Item number | 23009665 |
| Manufacturer | |
| Category | |
| Manufacturer no. | 58504 |
| Release date | 8.11.2022 |
| Colour group | Black |
| Exact colour description | Black |
| Drilling machine + percussion drilling machine Type | Impact drill screwdriver |
| Drill features | Drilling, Screws |
| Tool holder | Quick release |
| Max. screw diameter | 13 mm |
| Max. drilling diameter in wood | 30 mm |
| Max. drilling diameter in steel | 30 mm |
| Max. drilling diameter in masonry | 8 mm |
| Power supply | Rechargeable battery operated |
| Battery type | Li-ion |
| Battery voltage | 18 V |
| Capacity | 2 Ah |
| Number of batteries | 1 x |
| Battery equipment | 1 battery supplied |
| Charger equipment | Charger supplied |
| Cable length | 0.03 m |
| Number of gears | 2 x |
| Idle speed 1st gear | 350 rpm |
| Idle speed 2nd gear | 1250 rpm |
| Max. torque | 46 Nm |
| Items per sales unit | 1 x |
| Length | 3 cm |
| Width | 3 cm |
| Height | 3 cm |
| Weight | 3.10 kg |
| Weight | 3 g |
