Chauvin Arnoux Digiflex 1000 MA 400D

Manufacturer: Chauvin Arnoux
Designation: Digiflex 1000
Type: MA 400D
Display: digital
Analog bar display: no
Multiple display: no
With screen backlight: no
Measurement range selection: automatic
Current measurement range/AC: 0.02..400 A
Current type: AC
True RMS measurement: yes
Voltage measurement/AC: no
Voltage measurement/DC: no
Resistance measurement range: no
Temperature measurement: no
Capacitance measurement: no
Frequency measurement: no
Power measurement: no
Leakage current measurement: no
Harmonic measurement: no
Measurement in cables with live and return conductors: no
Clamp opening: 320 mm
Designed as an adapter for connection to multimeters: no
Interface: no
Measurement category: CAT IV
Max. voltage measurement category: 600 V
Continuity testing: no

Description:

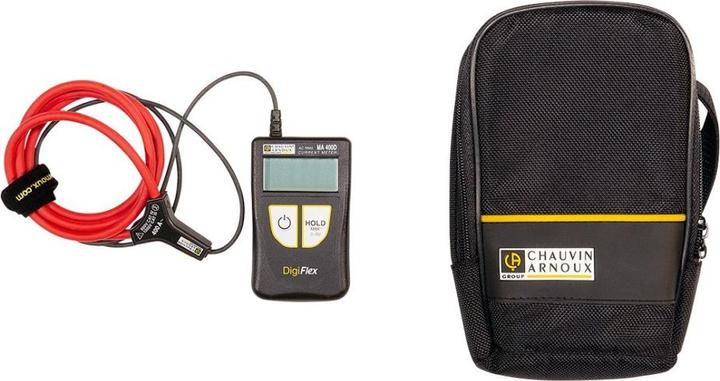

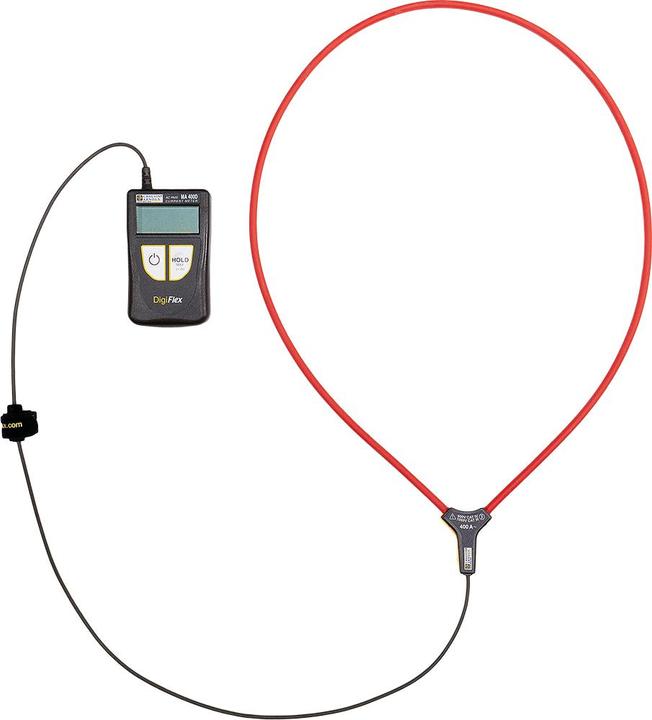

The DigiFLEX MA400D & MA4000D are equipped with flexible current measurement loops and housed in a compact case. They fit perfectly in switch and distribution cabinets in systems up to 600 V CAT IV. The devices are battery-operated and feature a digital display with 4,000 points that directly shows the measured current. They are easy to attach, thanks to an exclusive locking system for the measurement loops, and with their magnetic Multifix holder, they can be mounted anywhere in the cabinet. With a one-meter long measurement loop, the MA400D-1000 is the perfect addition to the toolset of electrical professionals for measuring and locating leakage or fault currents in multi-core branches, where a larger enclosing capacity is required. The included strap simplifies the storage of the DigiFLEX.
