Busch-Jaeger Timer 15 min 1070U 1070U (1070U)
8 items in stock at supplier
Product details

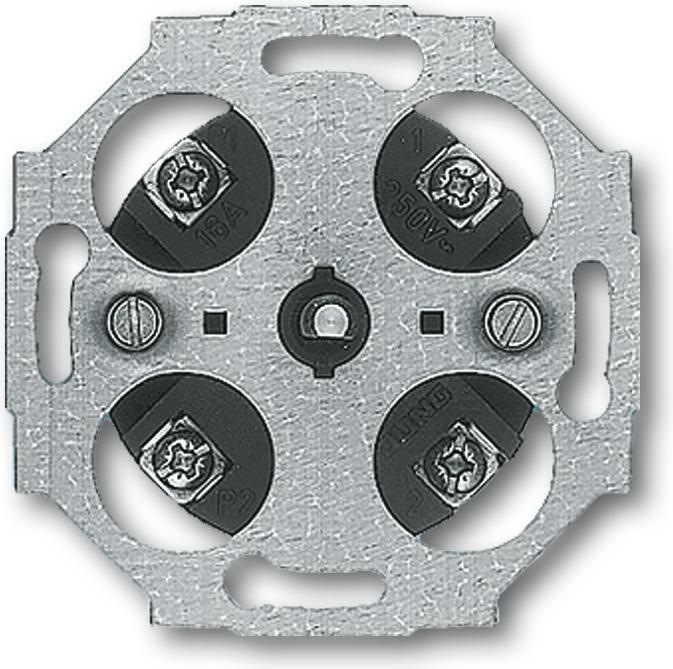

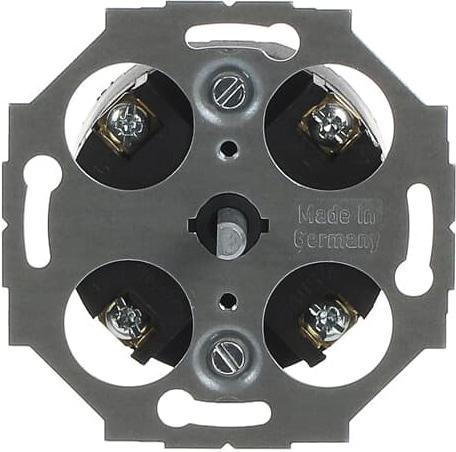

Busch-Jaeger Timer Module 1070 U
Manufacturer: Busch-Jaeger
Description: Timer Module 15 min
Type: 1070 U
Composition: Basic element
Number of contacts as switches: 2
Design: Mechanical
Time setting: 0 min
With semiconductor output: No
Mounting type: Other
Material: Other
Material quality: Other
Halogen-free: Yes
Surface protection: Untreated
Color: Other
Transparent: No
Suitable for protection class (IP): IP20
Nominal voltage: 250 V
Rated current: 16 A
Minimum depth of device box: 32 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No
Busch-Jaeger Timer Module 1070 U: Additional details
Runtime: 15 min

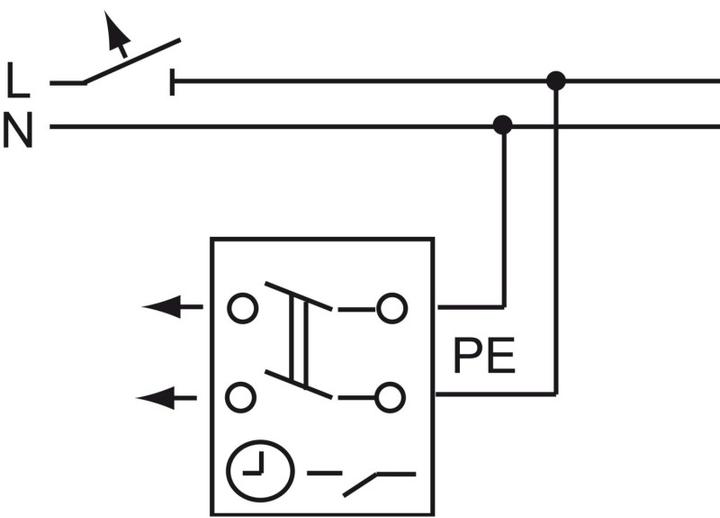

For time-controlled switching of electrical consumers. Mechanical operation (rotary operation). Screw terminals for connection wires. After the set time has elapsed, the closed contacts will reopen. For screw mounting only. To be installed only in conjunction with commercially available flush-mounted device boxes according to DIN 49073. No expansion option, only screw mounting on the flush-mounted box through keyholes.
EAN: 4011395019405.
Type of time switch | Mechanical timer |
Item number | 14173857 |
Manufacturer | Busch-Jaeger |
Category | Timers |
Manufacturer no. | 2CKA001043A0025 |
Release date | 11.11.2020 |
Colour | Black |
Exact colour description | Black |
Type of time switch | Mechanical timer |
Number of programmes | 1 x |
Smallest interval | 15 min |
mounting style | Flush-mounted |
Protection type (IP code) | IP20 |
Power supply | Electrical connection |
Electric current | 16 A |
Nominal voltage | 250 V |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Scope of delivery | 1 piece |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 41 mm |
Width | 18 mm |
Height | 9 mm |
Weight | 120 g |
Length | 9 cm |
Width | 8 cm |
Height | 7 cm |
Weight | 130 g |
