Eberle Controls UP-Thermostat UTE 3500RAL9010-G-55

Manufacturer: Eberle Controls
Designation: UP-Thermostat
Smart Home capable: Yes
Type: UTE 3500RAL9010-G-55
Control type On/Off: Yes
Control type modulating: Yes
Communication protocol: Other
Power supply type: 230 V

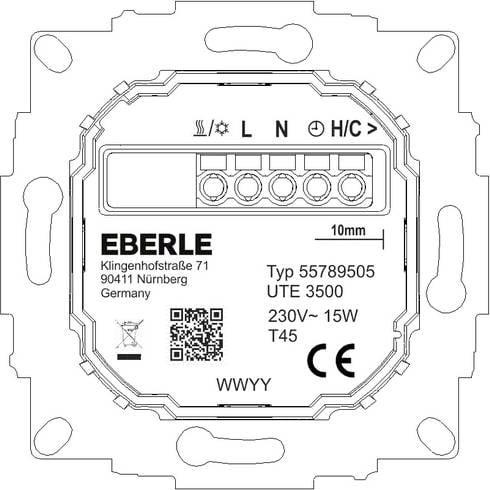

Connection: Three-/four-wire
With receiver: No
Measuring range: 5..30 °C
External sensor: No
Control characteristic: PID
Learning capability: No
Suitable for heating: Yes
Number of heating outputs: 1
Differential value: 0.1..0.5 K
Differential adjustable: Yes
Temperature readable: Yes
With display: Yes
Clock type: Daily clock
Clock design: Digital
Operation: Touchscreen
Suitable for underfloor heating: Yes
Remote control possible: Yes
With presence detection: Yes
Number of switching programs: 8
Contact design: Electronic
Max. contact voltage: 230 V
Max. contact load: 1 A
Protection class (IP): IP30
Color: White
RAL number: 9010

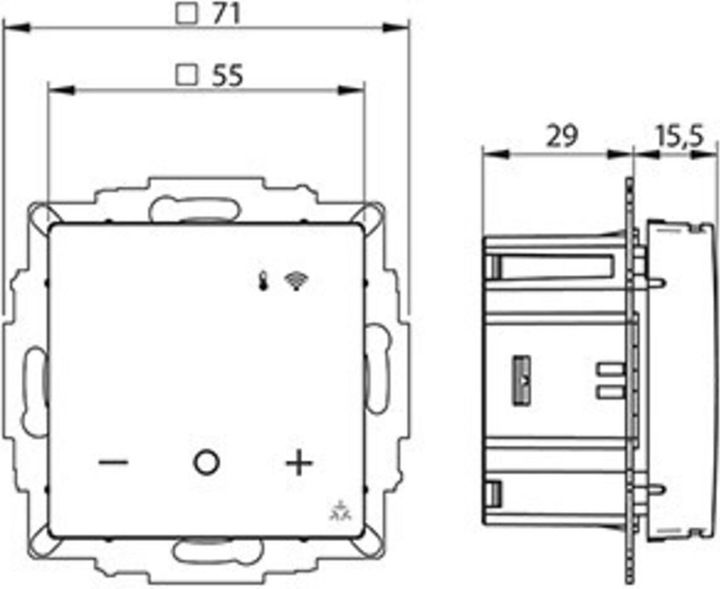

Width: 100 mm
Depth: 64 mm
Height: 115 mm
Class of temperature controller: IV
Power consumption in standby mode: 0.24 W

Additional details:

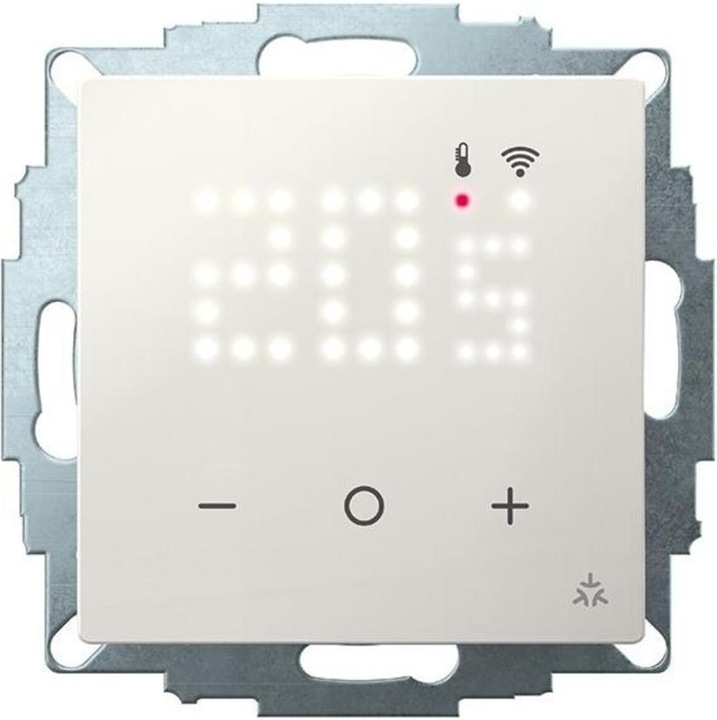

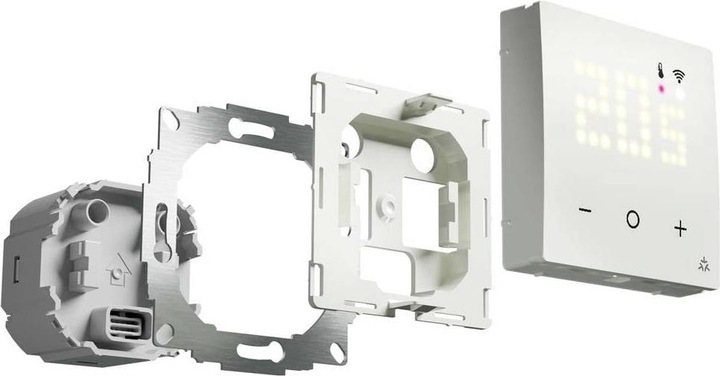

Smart Home capable flush-mounted room controller compatible with all common switch programs. Polar white glossy, 55x55 format without frame. Suitable for water-based heating systems (preset). Installation possible without WiFi connection. Integration into all common Smart Home apps, e.g., Google Home, Apple Home, Amazon Alexa via Matter WiFi standard possible. Programmable clock function adjustable in Smart Home app. Point-matrix LED in white, briefly on after button press. Tamper protection. Frost protection function. Adjustable temperature range limit. Valve protection. Control method PWM or 2-point adjustable. Heating/Cooling switching, presence/absent input. Adaptable to valves that are normally open. Installation in 55 mm flush-mounted box.
