I have an odd desk with a metal frame close to the wall/side of some drawers, I am unsure if the desk-clamp will fit. I see that it can be attached to desks up to 55mm thick - but how much front-to-back / side-to-side is needed for the underside of the clamp to attach to the desk?

Question

Accepted Answer

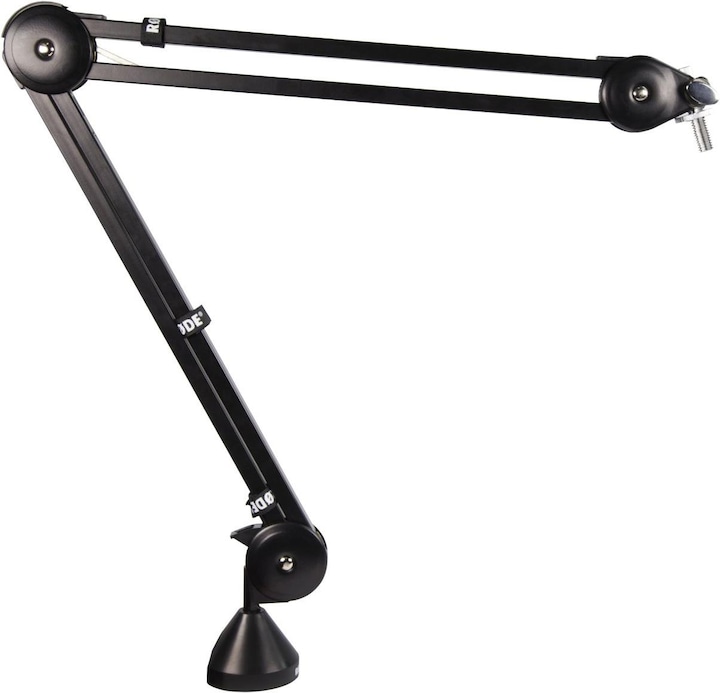

I have measured this on my PSA1 and, as Nathan83 has already pointed out, the base has a diameter of 7 cm and the mounting bracket requires a maximum of 1 cm between the table and any wall or similar -> attached is a link to the picture of the base (is from PSA1 +, but looks the same) https://www.digitec.ch/im/productimages/1/8/3/2/5/4/8/5/5/2/5/1/0/2/1/7/5/2/5/162a7e0e-71f2-436b-a8a2-1b1da1c6fd91.jpg?impolicy=ProductTileImage&resizeWidth=321&resizeHeight=700&cropWidth=321&cropHeight=700&quality=high

Answer

The bracket that goes from the foot along the edge of the table to the chamber is about 7mm thick. The foot itself stands completely on the table. The clamp is tightened with a screw thread. The pin has approximately the same diameter as the foot.
