Product details

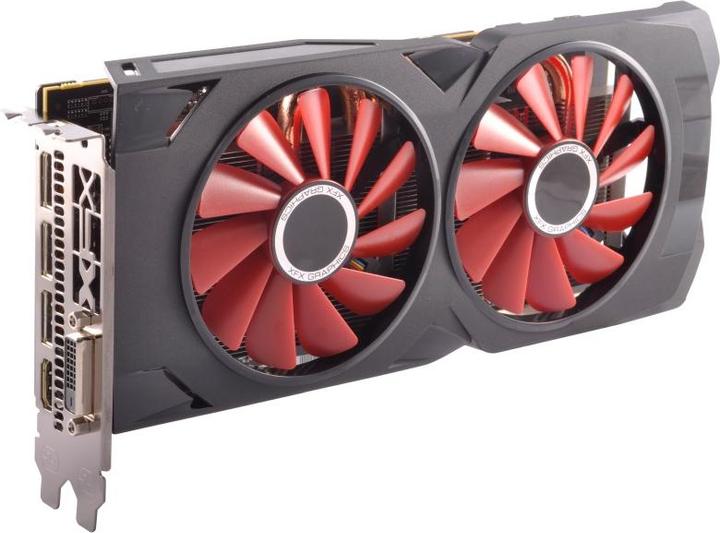

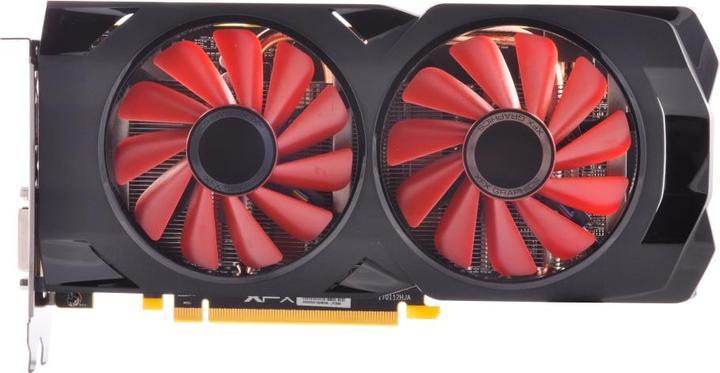

The GPU with AMD's fourth-generation GCN architecture (Polaris architecture) features 2048 shader units and operates at a clock speed of 1286 MHz. The 8 GB GDDR5 memory is connected to the GPU via a 256-bit interface and runs at 1750 MHz (effective data rate of 7000 MHz). The XFX Radeon RX 570 RS BLACK Edition supports not only DirectX 12 but also AMD Vulkan, Virtual Super Resolution (VSR), AMD LiquidVR, AMD FreeSync, and AMD Eyefinity.
Length | 24.30 cm |
Number of shaders | 2048 x |
Graphics card model | Radeon RX 570 |
Video memory clock | 1.75 GHz |
Max. connected monitors | 3 x |
Max. Video resolution | 3840 x 2160 Pixels |
Power consumption | 500 W |
Item number | 11053768 |
Manufacturer | XFX |
Category | Graphics card |
Manufacturer no. | RX-570P8DFD6 |
Release date | 7.5.2019 |
Max. connected monitors | 3 x |
PCI Express version | PCIe 3.0 |
Max. Video resolution | 3840 x 2160 Pixels |
Expansion card form factor | 2 slots |
Graphics chip (GPU) | AMD Radeon |
Graphics card model | Radeon RX 570 |
Clock frequency | 1168 MHz |
Boost frequency | 1286 MHz |
Number of shaders | 2048 x |
Video memory type | GDDR5 |
Storage capacity | 8 GB |
Video memory clock | 1.75 GHz |
Memory Interface | 256 bits |
Graphics card cooling system | Active cooler |
DirectX version | 12 |
OpenGL version | 4.50 |
Multi-GPU technology | AMD 2-Way CrossFireX |

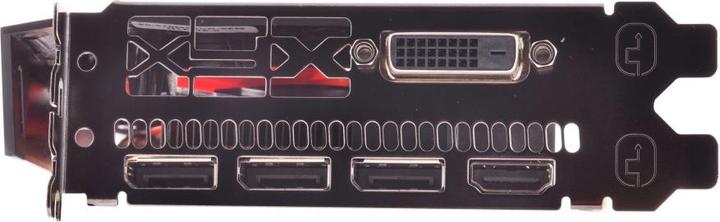

Video connections | DisplayPort (3x), DVI-D (Dual Link) (1x), HDMI (1x) |
DisplayPort version | 1.4 |
Power consumption | 500 W |
Min. recommended system performance | 500 W |
Power connectors | 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Length | 24.30 cm |
Width | 4 cm |
Height | 12.40 cm |
Length | 34 cm |
Width | 24.10 cm |
Height | 8.10 cm |
Weight | 1.09 kg |
Specifications may include unverified machine translations.
