SIMCom 7906-E - SIM7906E mPCIe - LTE Cat.6 Module, M.2 Format

SIMCom SIM7906E mPCIe - LTE Cat.6 Module, M.2 Format

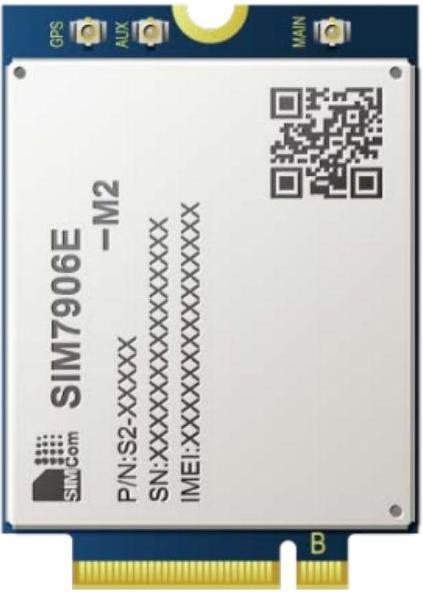

SIMCom SIM7906E is an LTE CAT.6 module for Europe in M.2 format. It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. The AT commands of SIM7906E-M2 are mostly compatible with SIM7500/SIM7600 Series modules.

• UMTS bands: B1 (2100), B8 (900), B3 (1800), B5 (850)

• MIMO (Multiple-Input Multiple-Output): Yes

• LTE bands: B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800DD), B5 (850), B38 (TDD 2600), B40 (TDD 2300), B28 (700 APAC), B41 (TDD 2500), B32 (1500)

• LTE region: Europe

• Form factor: M.2 3042

• Technology: LTE - cat 6

• Antenna interface: IPEX MHF-4

• GPS: Yes

• GNSS technology: GPS, GLONASS, BeiDou

• Max. DL speed: 300 Mbps

• Max. UL speed: 50 Mbps

• Supported driver: Windows 7, Windows XP, Windows Vista, Linux, Windows 8, Windows 10

• Interface: USB 2.0, USB 3.0

• SIM interface: Through M.2 connector

• Operating temperature: -40°C – 85°C

• Dimension: 30 x 42 x 2,3 mm.
