Product details
The Navi graphics chip of the AMD Radeon RX 5700 is based on the RDNA GPU architecture and is manufactured using a 7nm process. Features of this mid-range gaming graphics card include support for PCI Express 4.0, H265/HEVC video encoding, and support for new technologies such as Radeon VR Ready Premium. Also new is an innovative subdivision of the boost functions and the GDDR6 video memory with a capacity of 8 GB.
Length | 28.10 cm |
Number of shaders | 2304 x |
Graphics card model | Radeon RX 5700 |
Video memory clock | 1.47 GHz |
Max. connected monitors | 4 x |
Max. Video resolution | 5120 x 2880 pixels |
Power consumption | 180 W |
Item number | 11261312 |
Manufacturer | Sapphire |
Category | Graphics card |
Manufacturer no. | 21294-01-20G |
Release date | 20.6.2019 |
Max. connected monitors | 4 x |
PCI Express version | PCIe 4.0 |
Max. Video resolution | 5120 x 2880 pixels |
Expansion card form factor | 2 slots |
Graphics chip (GPU) | AMD Radeon |
Graphics card model | Radeon RX 5700 |
Clock frequency | 1465 MHz |
Boost frequency | 1725 MHz |
Number of shaders | 2304 x |
Video memory type | GDDR6 |
Storage capacity | 8 GB |
Video memory clock | 1.47 GHz |
Memory Interface | 256 bits |
Memory Bandwidth | 448 GB/s |
Graphics card cooling system | Active cooler |
Number of fans | 1 x |
DirectX version | 12 |
OpenGL version | 4.50 |

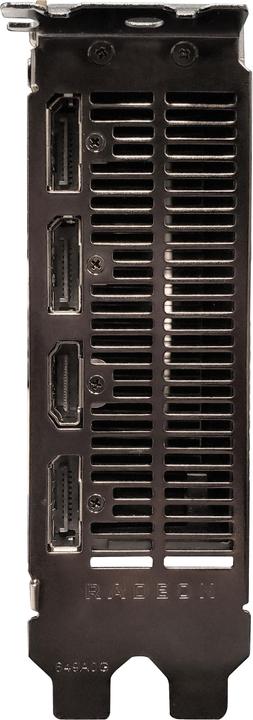

Video connections | DisplayPort (3x), HDMI (1x) |
DisplayPort version | 1.4 |
Power consumption | 180 W |
Min. recommended system performance | 600 W |
Power connectors | 6-pin PCI-E, 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Length | 28.10 cm |
Width | 11.10 cm |
Height | 3.60 cm |
Length | 7 cm |
Width | 21.70 cm |
Height | 36 cm |
Weight | 1.34 kg |
Specifications may include unverified machine translations.
