With the OXON AIR Gas Sensor Cartridge, you receive a versatile module equipped with three state-of-the-art sensors from the Swiss manufacturer Sensirion. The SGP41 reliably detects volatile organic compounds (VOCs) as well as nitrogen oxides (NOx), making it ideal for air quality monitoring. Complementing this is the SCD40, a photoacoustic CO2 sensor that accurately measures CO2 levels in the range of 400 to 2000 ppm. Rounding out the trio is the SHT40, a precise temperature and humidity sensor that ensures stable measurements. This cartridge impresses with its high measurement accuracy and the possibility for flexible programming. With pre-installed drivers and example programs, you can get started right away. Develop your own projects using the included source code and leverage the powerful sensors for a variety of applications. Please note that the cartridge requires an Oxocard CONNECT. Experience Swiss quality and set new standards in your projects.

Recommended accessories:

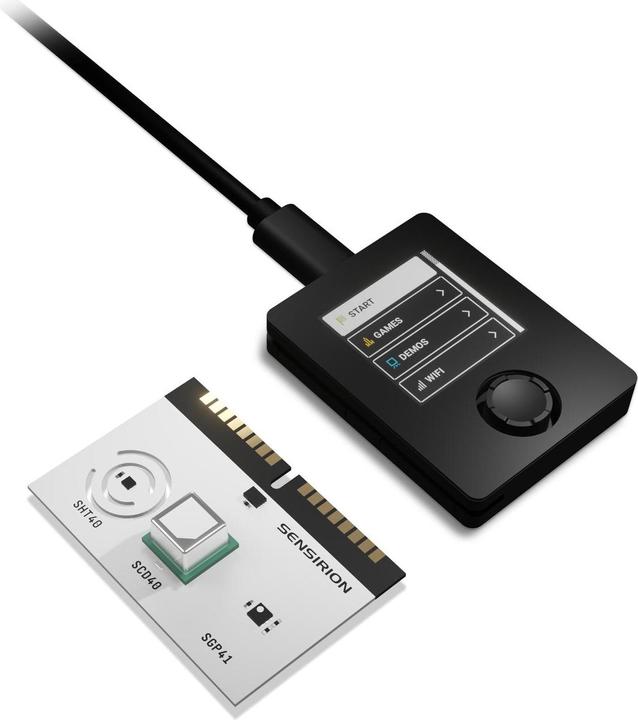

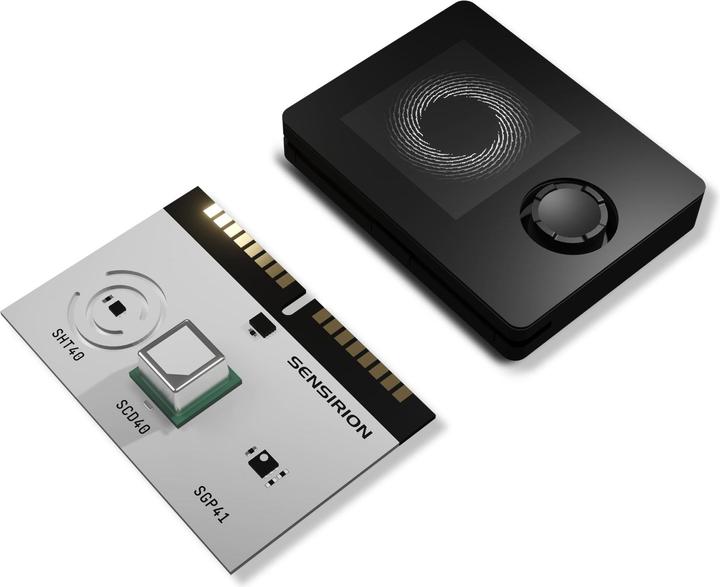

OXON Developer Board Oxocard Connect
OXON Developer Board Oxocard Connect Innovator Kit

Features:

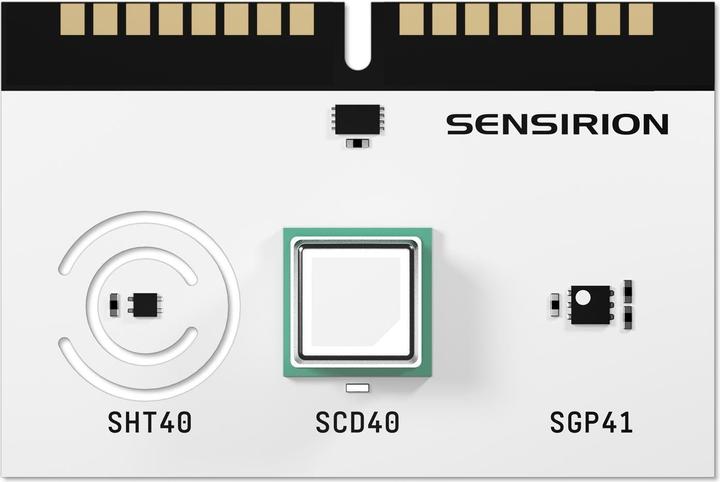

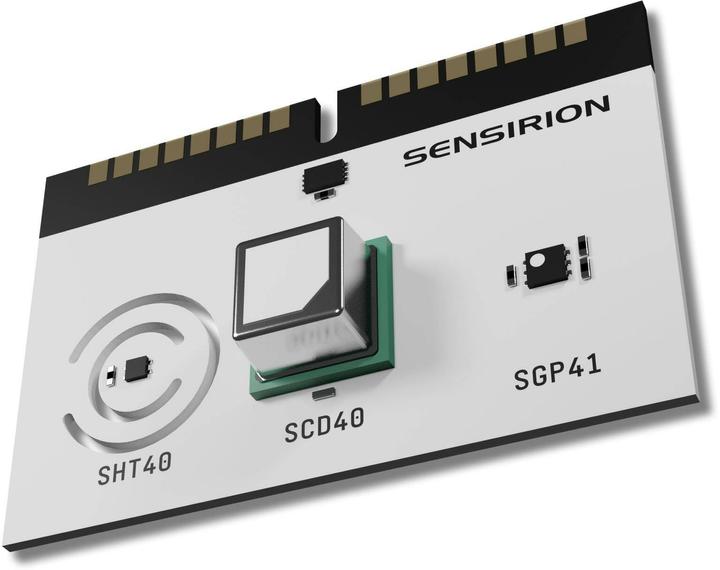

The cartridge contains three high-precision sensors from the manufacturer Sensirion.
The SGP41 detects volatile organic compounds and nitrogen oxides.
The SCD40 accurately measures CO2 levels in the range of 400-2000 ppm.
The SHT40 provides accurate temperature and humidity measurements.
The sensors are pre-installed and equipped with drivers and demo programs.

Technical specifications:
Manufacturer: OXON
Manufacturer SKU: 7629999801646
SENSIRION Sensors:
SGP41 is an MOx-based gas sensor capable of measuring volatile organic compounds (VOCs) and nitrogen oxides (NOx).
SCD40 is a photoacoustic sensor that reliably measures CO2 levels in the range of 400-2000 ppm.
SHT40 is a calibrated temperature and humidity sensor.
Board size: 48x29x7.5 mm
Dimensions: 90x60x8 mm
Weight: 6 g.
