Noctua NH-D12L

145 mm
Price in EUR including VAT, free shipping
Delivered between Wed, 30.4. and Mon, 5.5.
6 items in stock at supplier

Product details

Powerful dual-tower CPU cooler for AM5 and LGA1700 sockets. Compatible with AM4, AM5, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1200, LGA 1700, LGA 2011, LGA 2011 R3, and LGA 2066 processor sockets. Cooling type: Active (with fan). Dimensions (HxWxD): 158 mm x 125 mm x 112 mm. Maximum fan speed: 2000 rpm. Maximum airflow: 102.1 m³/h. Noise level during operation: 22.6 dBA.

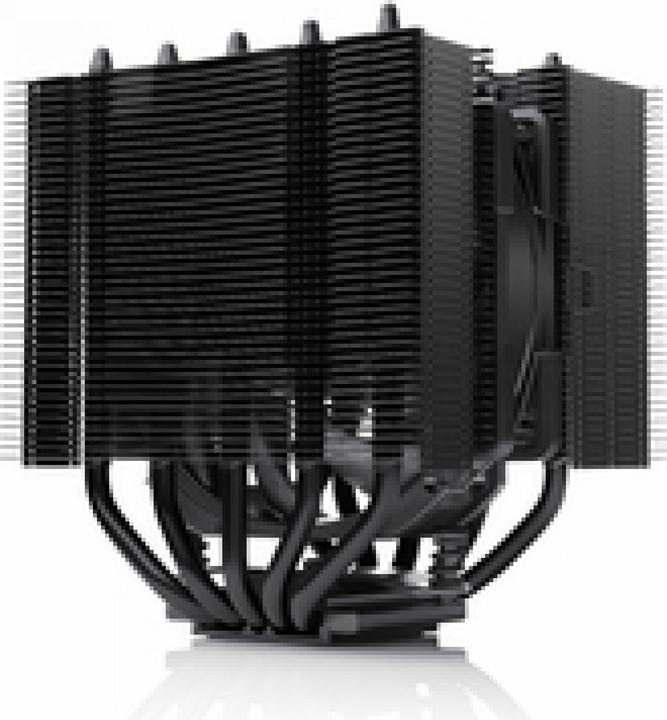

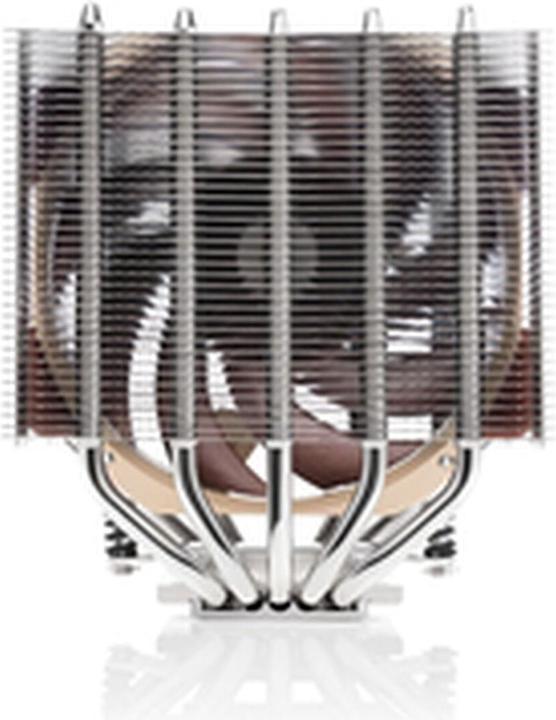

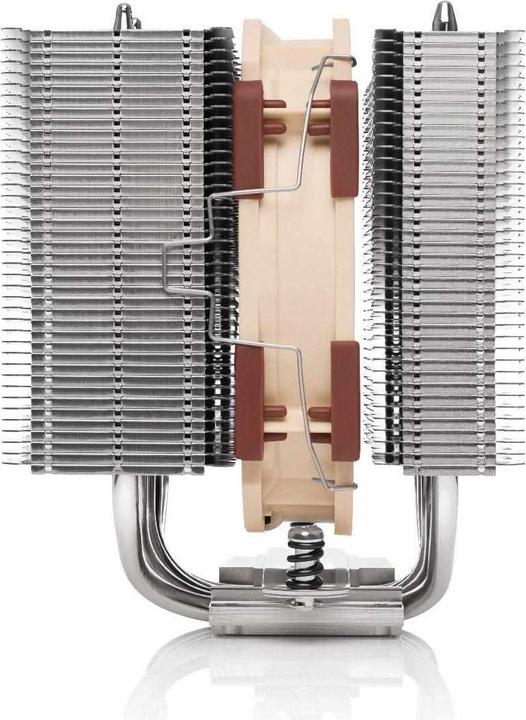

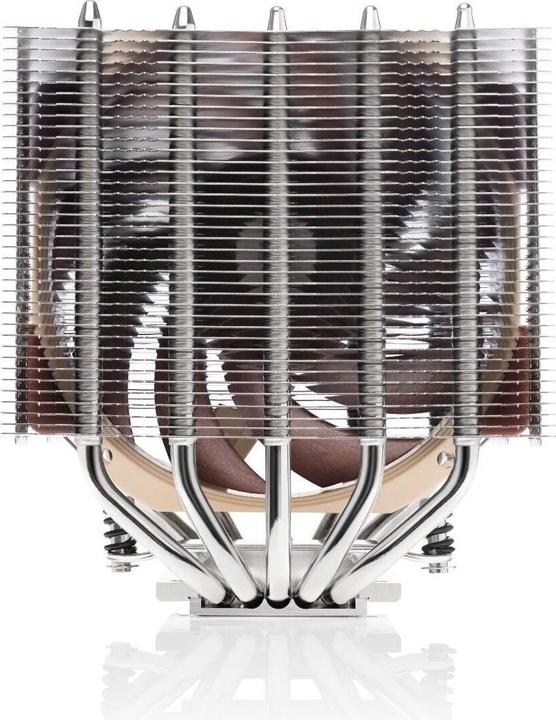

The NH-D12L is a 120mm-class CPU cooler that offers a unique combination of excellent silent cooling performance and outstanding case compatibility due to its particularly low height. With a height of only 145 mm (13 mm lower than classic 120 mm Noctua models), it fits into numerous 4U systems as well as narrower tower cases that were previously limited to solutions with 92 mm fans.

Thanks to its dual-tower design with five heat pipes and the innovative 120 mm fan NF-A12 x 25r, it achieves a performance level that surpasses many full-height 120 mm models. The single-fan configuration and asymmetric design ensure that the NH-D12L does not extend over the memory slots on AMD AM4/AM5 and Intel LGA1700/1200, providing 100% RAM compatibility.

The high-quality overall package is rounded off by the proven SecuFirm2 mounting system, Noctua's renowned NT-H1 thermal paste, and a 6-year manufacturer warranty. All in all, the NH-D12L is the perfect choice when top-notch cooling performance is needed, but there is not enough space for the larger NH-U12A.

Key specifications

Socket
AM2+AM3+AM4FM1FM2+LGA 1150LGA 1151LGA 1155LGA 1156LGA 1200LGA 1700LGA 2011LGA 2066
Height (with fan)
145 mm
Diameter
120 mm
power connector
4-pin PWM
Number of fans
1 x
Item number
20422369

General information

Manufacturer
Noctua
Category
CPU coolers
Manufacturer no.
NH-D12L
Release date
21.4.2022

Colour

Colour
Brown
Exact colour description
BrownSilver

Cooler properties

CPU cooler design
Dual Tower
Fan type
Top-Down Cooler
Socket
AM2+AM3+AM4FM1FM2+LGA 1150LGA 1151LGA 1155LGA 1156LGA 1200LGA 1700LGA 2011LGA 2066
Supported fan sizes
120mm

Heat sink properties

Number of heatpipes
5
Number of cooling fins
145
Materials radiator core
Aluminium
Material cooling fins
Aluminium

Fan dimensions

Diameter
120 mm
Length
113 mm
Width
120 mm
Height
145 mm
Weight
1220 g

Fan properties

Number of fans
1 x
Max. Speed
2000 RPM
Airflow
102.10 m³/h
Max. noise level
22.60 dB
LED colour
without LED

Connections

power connector
4-pin PWM

Power supply

Power consumption
1.68 W
Voltage
12 V

Scope of delivery

Scope of delivery
Low-noise adapterPWM Premium fanRefrigeration unitsWater cooling

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width (with fan)
120 mm
Length (with fan)
113 mm
Height (with fan)
145 mm
Weight
890 g

Package dimensions

Length
24 cm
Width
18.30 cm
Height
17.70 cm
Weight
1.60 kg
