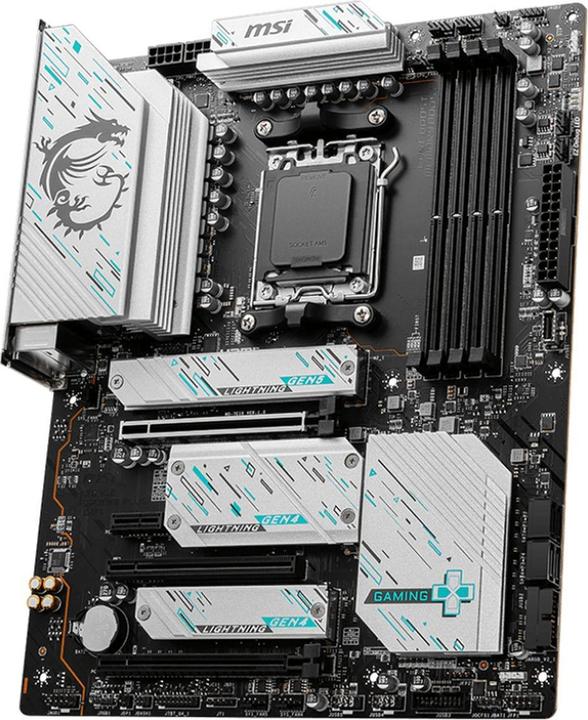

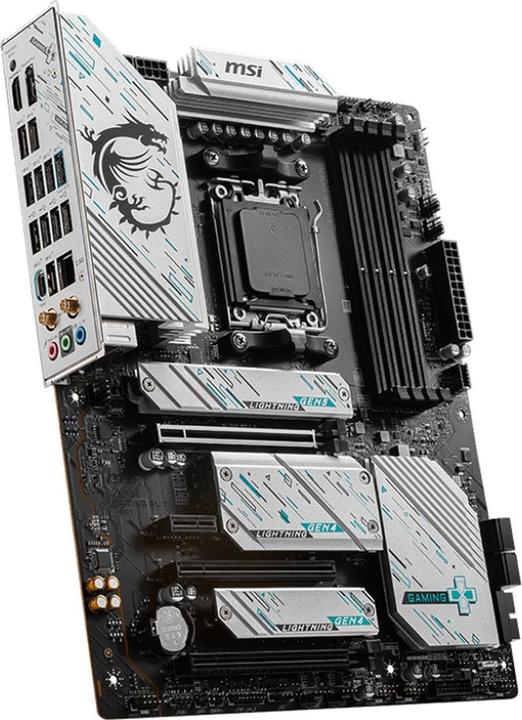

MSI X670E GAMING PLUS WIFI

AM5, AMD X670E, ATX
Price in EUR including VAT, free shipping
12Ratings
Delivered Fri, 27.12.
More than 10 items in stock

Product details

Unleash and get maximum performance with an aggressive VRM design equipped with a digital CPU power system. The MSI X670E GAMING PLUS WIFI motherboard combines 8 + 8-pin power connectors with exclusive
Core Boost technology and is ready to withstand heavy gaming loads. Having trouble turning screws? The innovative MSI EZ M.2 Clip helps you install an M.2 SSD quickly and effortlessly. The 4-pin, 8-pin and 24-pin power connectors on MSI motherboards are all equipped with solid pins. The solid pin design allows for a more stable transfer of 12V power to the CPU, even under high current loads. A big step towards improving DDR performance with the DDR5 memory. Combined with the special SMT welding process and MSI Memory Boost technology, MSI X670E GAMING PLUS WIFI motherboards are ready to deliver world-class memory performance. Get more from a loaded BIOS designed for ease of use. Optimise the motherboard for gaming performance, efficiency or overclocking world records. Add more colour if you want. The Mystic Light Extension header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system without the need for a separate RGB controller. MSI's premium networking solution offers incredible data transfer speeds for demanding users.

Key specifications

Processor family
Ryzen 3 8th Gen,
Ryzen 5 8th Gen,
Ryzen 7 8th Gen,
Ryzen 7th Gen,
Ryzen 9 8th Gen
Memory type
DDR5 RAM
Internal connection options
M.2 (4x),
S-ATA III (4x)
Wireless transmission
Bluetooth,
Wi-Fi

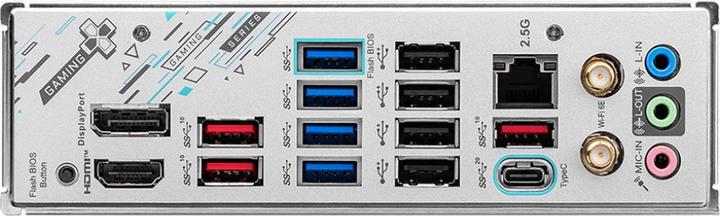

Peripheral connections
RJ45 (1x),
USB 3.2 Gen 1 (4x),
USB 3.2 Gen 2 (1x),
USB 3.2 Gen 2 (3x),
USB Type-C (1x)
Item number
40272247

General information

Manufacturer
MSI
Category
Motherboards
Manufacturer no.
7E16-003R
Release date
28.11.2023
Sales rank in Category Motherboards
33 of 804

Motherboard properties

Form factor
ATX
Processor socket
AM5
Chipset
AMD X670E
Mainboard features
Trusted Platform Module
Operating system compatibility
Windows,
Windows 10
Peripheral connections
RJ45 (1x),
USB 3.2 Gen 1 (4x),
USB 3.2 Gen 2 (1x),
USB 3.2 Gen 2 (3x),
USB Type-C (1x)
BIOS type
UEFI AMI
Wireless transmission
Bluetooth,
Wi-Fi
Wi-Fi standard
Wi-Fi 6E / 802.11az

Processor

Processor family
Ryzen 3 8th Gen,
Ryzen 5 8th Gen,
Ryzen 7 8th Gen,
Ryzen 7th Gen,
Ryzen 9 8th Gen

Memory

Memory form factor
U-DIMM
Number of memory modules (RAM)
4 x
Max. memory (RAM)
256 GB
Max. RAM OC
6600 MHz
Supported memory speed
4800 MHz,
5000 MHz,
5200 MHz,
5400 MHz,
5600 MHz,
5800 MHz,
6000 MHz,
6200 MHz,
6400 MHz,
6600 MHz
Memory type
DDR5 RAM
Channel architecture
2

Graphics properties

Video connections
DisplayPort (1x),
HDMI (1x)
Video connection version
Display port 1.4,
HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek RTL8125-BG
Max. port speed
2.50 Gbit/s
Maximum port speed 2
2.50 Gbit/s

Audio

Chip
Realtek ALC897
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (3x)

Internal interfaces

Internal connection options
M.2 (4x),
S-ATA III (4x)
Expansion slot
PCI Express x1 (1x),
PCI Express x16 (3x)
PCI express version (max.)
5
Number of fan connector
1

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Product dimensions

Length
304.80 mm
Width
243.80 mm
Height
70 mm
Weight
1800 g

Package dimensions

Length
34.10 cm
Width
27.70 cm
Height
9.20 cm
Weight
1.79 kg
