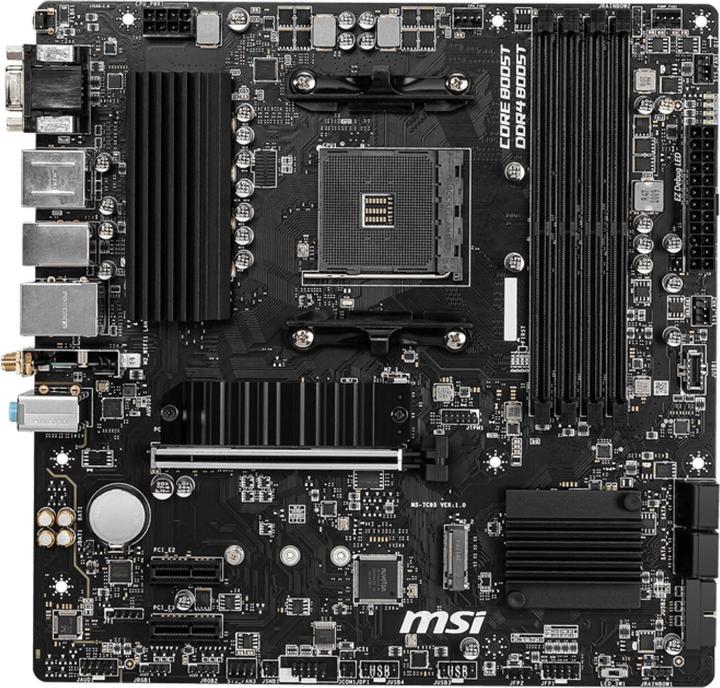

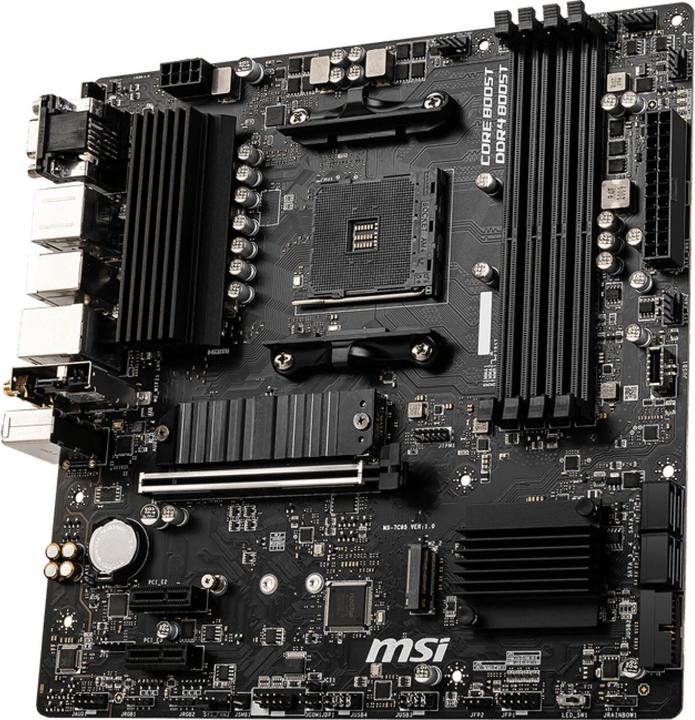

MSI B550M PRO-VDH WIFI

AM4, AMD B550, mATX
Price in EUR including VAT, free shipping
38Ratings
BrandMore from MSI
Delivered Mon, 17.3.
More than 10 items in stock

Product details

Key specifications

Processor family
Ryzen 3rd generation
Memory type
DDR4-RAM
Number of memory modules (RAM)
4 x
Internal connection options
M.2 PCI/SATA Combo (1x),
M.2 SATA (1x),
S-ATA III (4x)
Wireless transmission
Wi-Fi
Mainboard features
Clear CMOS Button
Item number
13347416

General information

Manufacturer
Category
Manufacturer no.
7C95-001R
Release date
5.6.2020

Motherboard properties

Form factor
Micro ATX (mATX)
Processor socket
AM4
Chipset
AMD B550
Mainboard features
Clear CMOS Button
Operating system compatibility
Linux,
Windows
Wireless transmission
Wi-Fi
Wi-Fi standard
Wi-Fi 5 / 802.11ac

Processor

Processor family
Ryzen 3rd generation

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR4-3200
Max. RAM OC
4400 MHz
Supported memory speed
1866 MHz,
2133 MHz,
2400 MHz,
2800 MHz,
2933 MHz,
3000 MHz,
3200 MHz
Memory type
DDR4-RAM
RAM buffer
Unbuffered

Graphics properties

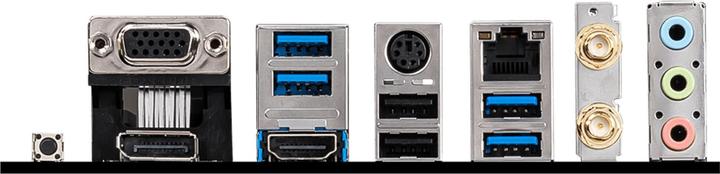

Video connections
DisplayPort (1x),
HDMI (1x)

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek 8111H
Max. port speed
1 Gbit/s

Audio

Chip
Realtek ALC892
Audio channel
7.1 Channel
Audio Connections
Audio In

Data storage

RAID configuration
0,
1,
10

Internal interfaces

Internal connection options
M.2 PCI/SATA Combo (1x),
M.2 SATA (1x),
S-ATA III (4x)
Expansion slot
PCI Express x16 (1x)
PCI express version (max.)
4
Number of fan connector
3

Further connections

USB ports
USB-C

Power supply

Power connectors
24-pin ATX,
4-pin ATX 12V,
8-pin ATX 12V

Sustainability

Manufacturer commitment
SBTi

Scope of delivery

Scope of delivery
Sata Cables

Product dimensions

Length
244 mm
Width
244 mm
Height
65 mm
Weight
1000 g

Package dimensions

Length
29.10 cm
Width
28.20 cm
Height
7.20 cm
Weight
1.14 kg
