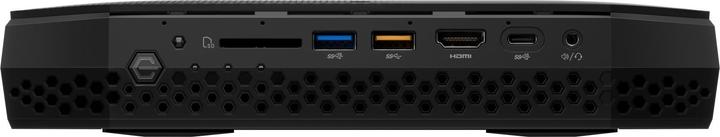

Intel NUC Hades Canyon VR NUC8i7HVK
Intel Core i7-8809GCurrently out of stock
Product details
This barebone is equipped with an Intel 8th Gen Mobile Core processor, which is combined with an AMD Radeon RX Vega graphics unit in the same package. This exceptional combination eliminates the weaknesses of Intel's own HD graphics unit, allowing the NUC8i7HVK to provide a smoother gaming experience. The graphics performance is expected to be similar to that of an Nvidia GeForce GTX 1060.
Number of processor cores | 4 -Core |
Graphics card model | Radeon RX Vega M GH |
Internal connection options | M.2 (2x) |
Network connections | RJ45 (2x) |
Video connections | HDMI (2x), Mini DisplayPort (2x) |
Memory type | DDR4-RAM |
USB ports | Thunderbolt 3, USB-A |
Item number | 8359828 |
Manufacturer | Intel |
Category | Barebones |
Manufacturer no. | BOXNUC8I7HVK2 |
Release date | 16.4.2018 |
Design | Ultra Slim |
Processor type | Intel Core i7-8809G |
Clock frequency | 3.10 GHz |
Number of processors | 1 x |
Number of processor cores | 4 -Core |
Number of threads | 8 |
Socket | BGA 2270 |
Max. turbo clock rate | 4.20 GHz |
Max. TDP | 100 W |
Processor properties | 64-bit architecture, Direct I/O Virtualization Technology (VT-d) |
Memory type | DDR4-RAM |
Memory form factor | SO-DIMM |
Number of pins | 260 x |
Memory chip compatibility | DDR4-2400 |
Memory Slots available | 2 |
Max. memory slots | 2 |
Max. RAM | 32 GB |
Memory voltage | 1.20 V |
Graphics card model | Radeon RX Vega M GH |
Hardware application range | Beginner, Gaming |
Max. connected monitors | 6 x |
Internal connection options | M.2 (2x) |
RAID configuration | 0, 1 |
USB ports | Thunderbolt 3, USB-A |
Exact USB ports | Thunderbolt 3 (2x), USB-A 3.0 (6x), USB-A 3.1 Gen 1 (1x) |
Network connections | RJ45 (2x) |
Max. port speed | 1000 Mbit/s |
Connectivity | Bluetooth, WLAN |
Wi-Fi standard | Wi-Fi 5 / 802.11ac |
Bluetooth version | 4.2 |
Video connections | HDMI (2x), Mini DisplayPort (2x) |
Audio outputs | 3.5mm jack (1x) |
Memory card type | SDXC |
Power | 230 W |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x power supply |
Width | 221 mm |
Length | 142 mm |
Height | 39 mm |
Length | 34.80 cm |
Width | 28.30 cm |
Height | 18 cm |
Weight | 3 kg |
