Product details
The EVGA GeForce RTX 2070 Super Black Gaming is part of NVIDIA's 2000 series gaming graphics cards and serves as the link between high-end and mid-range. It features a TU104-410-A1 graphics chip with 2,560 CUDA cores. The chip is manufactured using a 12nm FinFET process and is based on the "Turing" GPU architecture. It utilizes 8 GB of GDDR6 VRAM, while ray tracing and tensor cores enable fantastic lighting and shadow effects. In the new Super variant, the base and boost clock speeds have been increased, and the shader units have been raised from 2,304 to 2,560.
Length | 27 cm |
Number of shaders | 2560 x |
Graphics card model | GeForce RTX 2070 Super |
Video memory clock | 14 GHz |
Max. connected monitors | 4 x |
Max. Video resolution | 7680 x 4320 pixels |
Power consumption | 215 W |
Item number | 11533416 |
Manufacturer | EVGA |
Category | Graphics card |
Manufacturer no. | 08G-P4-3071-KR |
Release date | 25.7.2019 |
Max. connected monitors | 4 x |
PCI Express version | PCIe 3.0 |
Max. Video resolution | 7680 x 4320 pixels |
Expansion card form factor | 2 slots |
LED colour | without LED |
Graphics chip (GPU) | nVidia GeForce |
Graphics card model | GeForce RTX 2070 Super |
Clock frequency | 1605 MHz |
Boost frequency | 1770 MHz |
Number of shaders | 2560 x |
Video memory type | GDDR6 |
Storage capacity | 8 GB |
Video memory clock | 14 GHz |
Memory Interface | 256 bits |
Memory Bandwidth | 448 GB/s |
Graphics card cooling system | Active cooler |
DirectX version | 12 |
OpenGL version | 4.50 |

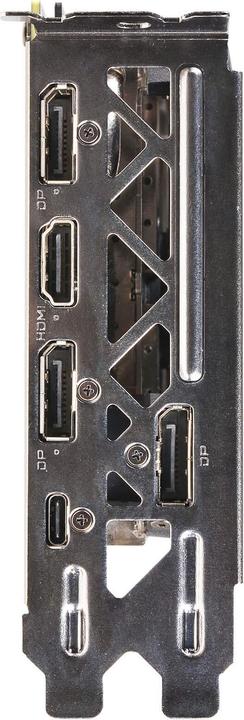

Video connections | DisplayPort (3x), HDMI (1x) |
DisplayPort version | 1.4 |
Power consumption | 215 W |
Min. recommended system performance | 650 W |
Power connectors | 6-pin PCI-E, 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Length | 27 cm |
Width | 11.12 cm |
Height | 11.12 cm |
Length | 12.50 cm |
Width | 24 cm |
Height | 37.50 cm |
Weight | 1.50 kg |
Specifications may include unverified machine translations.
