Datalogic PowerScan PM9100
1D barcodes6 items in stock at supplier
Product details

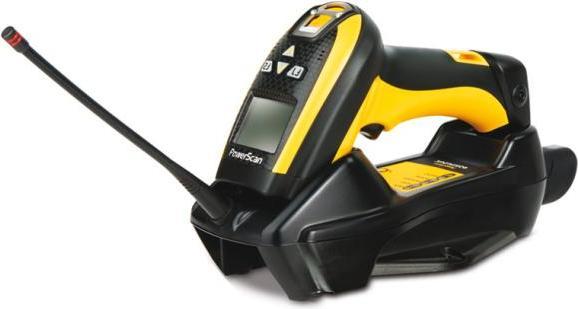

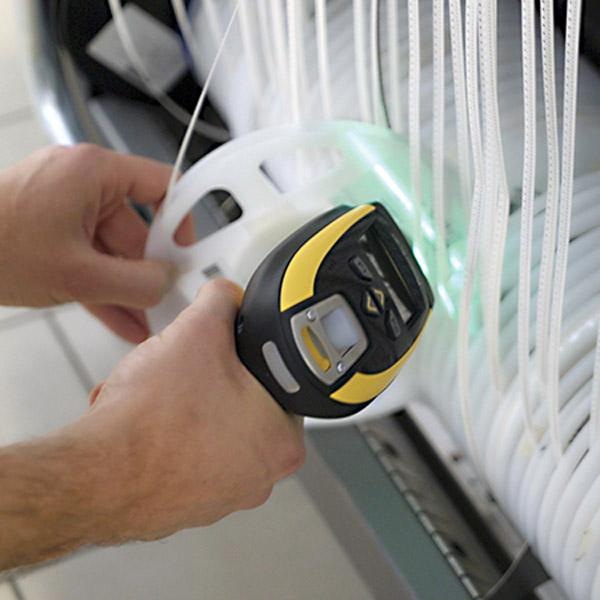

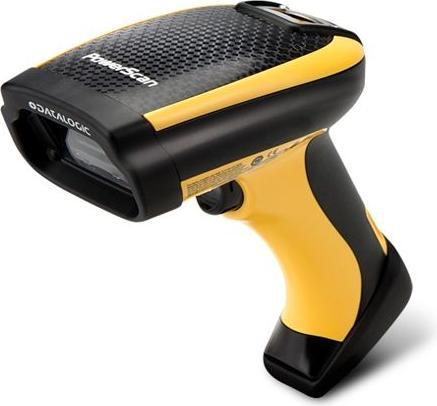

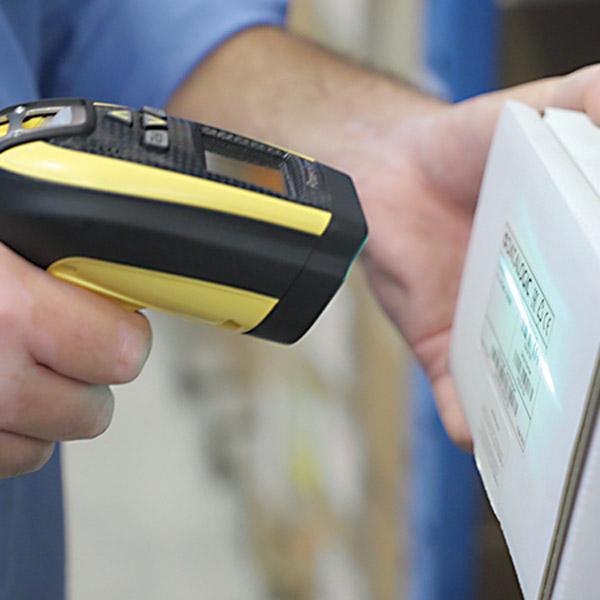

Datalogics mobile linear imager PowerScan PM9100 communicates via shortwave radio (433 or 910 MHz), making it the ideal choice for anyone who prefers not to use Bluetooth or Wi-Fi scanners due to potential interference. The powerful linear imager scans barcodes with a line of green light, which is gentle on the eyes and significantly simplifies aiming. This makes the PM9100 a great aid in warehouses, production, logistics, and transportation.

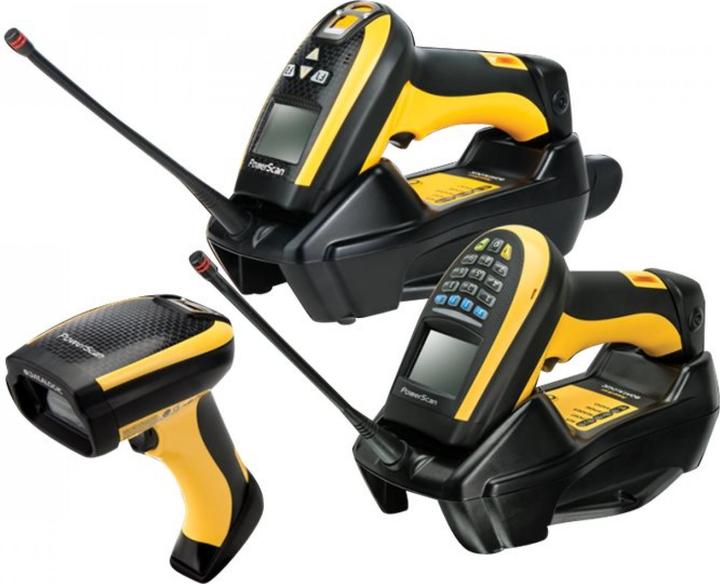

With one radio receiver, you can operate up to 16 scanners simultaneously with seamless roaming. Since the scanner uses Datalogics' wireless STAR-System 2.0 for its radio connection, it is also compatible with existing infrastructures and devices based on this system. Additionally, it is dust-tight according to IP65, protected against splashes from all directions, and drop-resistant from heights of up to 2 meters. The PM9100 is available in three different variants – in addition to the basic model, there are two versions with a display, one with 4 buttons and one with a full alphanumeric 16-key keypad.
Scanner type | Hand-held scanner |
Connections | USB |
Signal transmission | Cable, Wireless |
Item number | 10167255 |
Manufacturer | Datalogic |
Category | Barcode scanners |
Manufacturer no. | PM9100-D433RBK10 |
Release date | 13.9.2017 |
Colour | Multicoloured |
Exact colour description | Black, Yellow |
Scanner type | Hand-held scanner |
Barcode Scanner Version | Scanner USB Kit |
Scanning method | Laser |
Barcode Scanner Features | Keyboard inscription |
Connections | USB |
Signal transmission | Cable, Wireless |
Protection type (IP code) | IP65 |
Max. Drop height | 2 m |
Scanner functions | 1D barcodes |
Minimum print contrast | 15 % |
Stack codes | Code 32, Code 39, Code 93, Codebar, EAN, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, UPC |
Read angle lengthwise max. | 75° |
Read angle cross max. | 70° |
Image resolution | 48 x 132 pixels |
Display functions | Tiltable |
Wireless transmission | Bluetooth |
Max. range | 50 m |
Frequency | 433 MHz |
Battery type | Li-ion |
Battery life | 4 h |
Capacity | 2150 mAh |
Country of origin | Vietnam |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Battery, Charging station, Power supply, USB cable |
Length | 110 mm |
Width | 212 mm |
Height | 74 mm |
Weight | 435 g |
Length | 37.50 cm |
Width | 30.80 cm |
Height | 14.40 cm |
Weight | 2.45 kg |
