Datalogic Heron HD3430 Kit
1D barcodes, 2D barcodesPrice in EUR including VAT, free shipping
Delivered between Thu, 15.5. and Tue, 20.5.
Product details

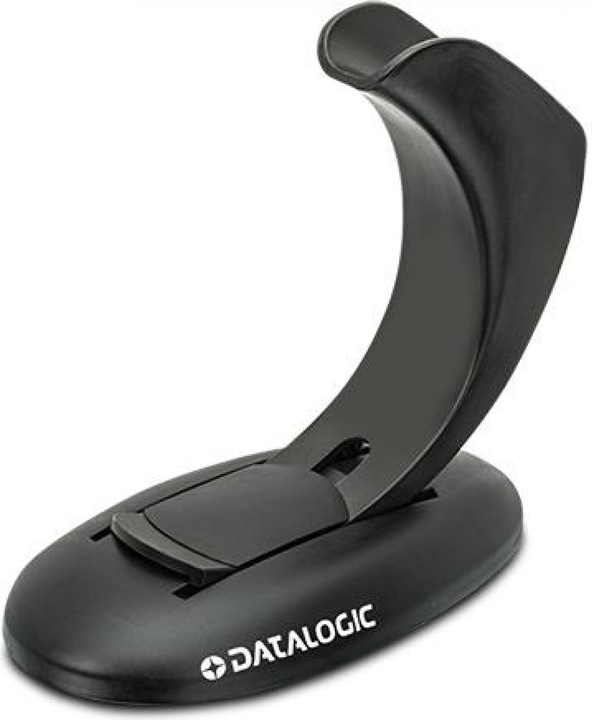

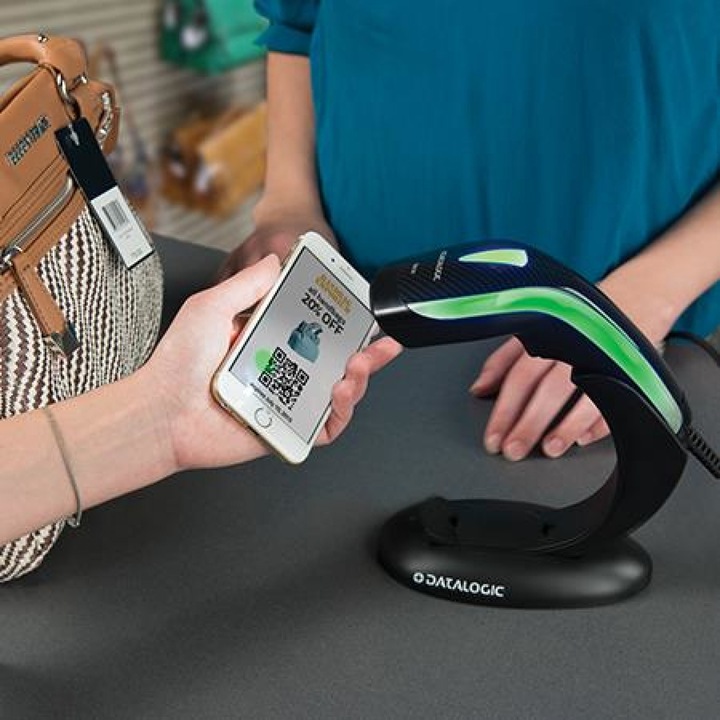

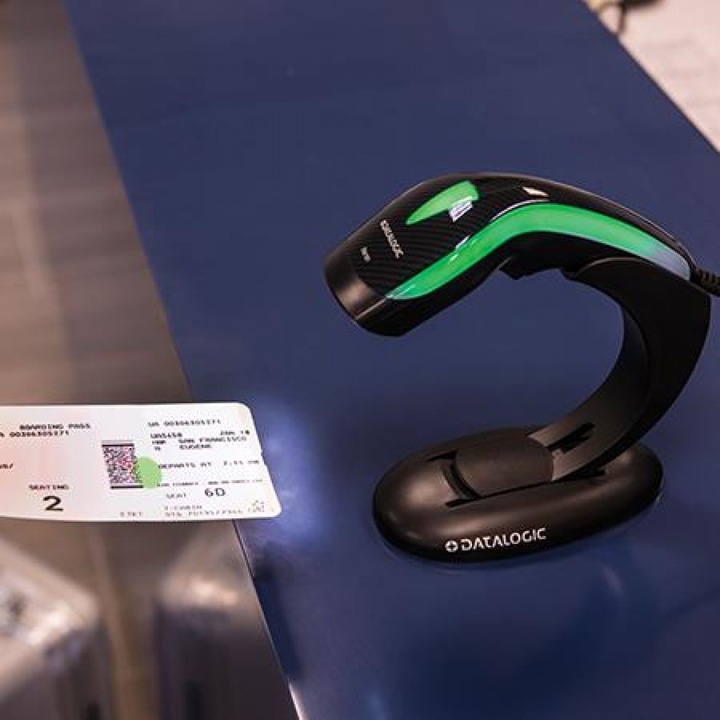

The Heron HD3430 2D imager features a distinctive look in Carbon Fiber black or Silver white, highlighting the curved lines of the Heron housing. For a consistent brand appearance, the imager can be customized. For example, the company logo can be applied, a specific lighting color can be set, and a special melody or sound output can be configured. The Heron HD3430 Area Imager offers excellent 2D reading performance and image capture. Additionally, it includes the patented Datalogic Green Spot technology for reading confirmation. The white illumination of the Heron HD3430 enhances user comfort, and the clearly visible 4-point crosshair ensures an accurate reading area. The cross in the center of the crosshair aids in targeting when multiple barcodes are present. Heron HD3430 Kit, White (Kit includes 2D scanner, autosense flex stand, and USB cable).
Scanner type | Hand-held scanner |
Connections | RS-232, USB |
Signal transmission | Cable |
Item number | 10401026 |
Manufacturer | Datalogic |
Category | Barcode scanners |
Manufacturer no. | HD3430-BKK1S |
Release date | 20.2.2017 |
Colour | Black |
Exact colour description | Black, Silver |
Scanner type | Hand-held scanner |
Barcode Scanner Version | Scanner USB Kit |
Scanning method | Imagers |
Connections | RS-232, USB |
Signal transmission | Cable |
Protection type (IP code) | IP40 |
Max. Drop height | 1.50 m |
Scanner functions | 1D barcodes, 2D barcodes |
Minimum print contrast | 15 % |
Max- Scan distance | 40 cm |
Stack codes | Aztec Code, China Han Xin Code, Data matrix, MaxiCode, Micro QR Code, QR code |
Read angle lengthwise max. | 65° |
Read angle cross max. | 60° |
Image resolution | 752 x 480 pixels |
Display functions | Tiltable |
Max. range | 0.40 m |
Battery type | Lead–acid battery |
Capacity | 500 mAh |
Voltage | 5 V |
Country of origin | Vietnam |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Pedestal, USB cable |
Length | 152 mm |
Width | 68 mm |
Height | 153 mm |
Weight | 150 g |
Product Safety |
