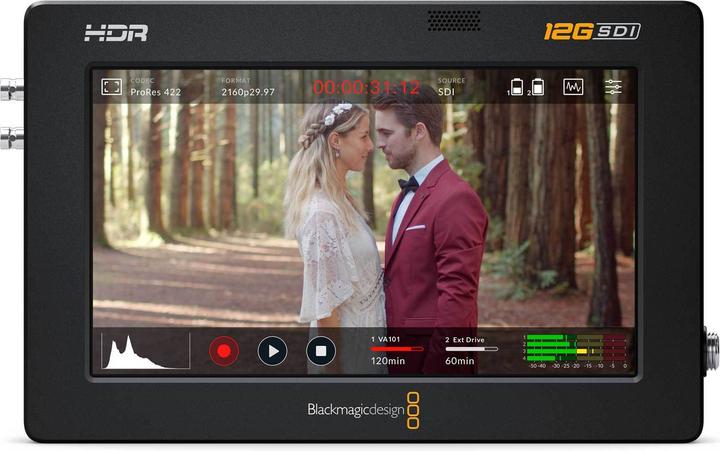

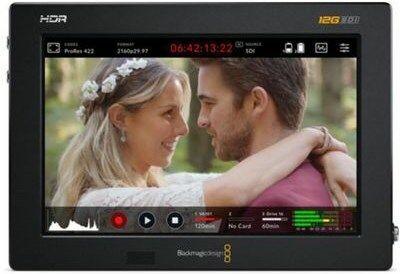

Blackmagic Video Assist 12G SDI

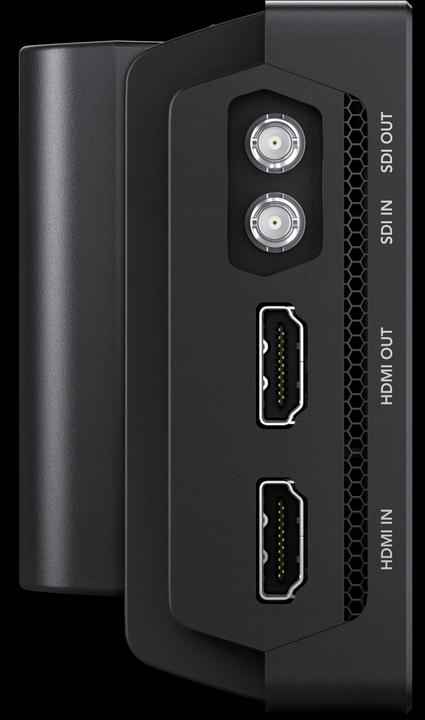

bright 5-inch 2500 nit HDR monitor supports 3D LUTs and features professional scopes and powerful focus and exposure aids for precise focusing, exposing and framing. The built-in SD card recorder saves files in broadcast-quality 10-bit 4:2:2 ProRes and DNx. You can edit these popular formats directly without having to convert them.Connections: -SDI video inputs: 1 Micro-BNC -SDI video outputs: 1 Micro-BNC -SDI rates: 270 Mbit; 1.5 G; 3 G; 6 G; 12 G -HDMI 2.0a video inputs: 1 -HDMI 2.0a video outputs: 1 -Analog audio inputs: None, embedded audio only -Analog audio outputs: 1 x 3.5mm headphone jack -Integrated speaker: 1 mono -Screen dimensions: 5 inches with 1920 x 1080 pixels -Screen brightness: 2500 nit -Screen color: P3 color space -SDI audio inputs: 16 channels embedded in 12G-SDI -SDI audio outputs: 16 channels embedded in 12G-SDI -HDMI audio inputs -8 channels embedded in HDMI 2.0a -HDMI audio outputs: 8 channels embedded in HDMI 2.0a -Remote control: None -SD interface: 1 SD slot for UHS-II cards -Memory type: Removable SD cards with SDXC-UHS-II, SDXC-UHS-I and SDHC-UHS-I -Supports the following SD cards: DS, HS, SDR12, SDR25, DDR50 and SDR104 -Computer interface: 1 USB Type C 3.1 of generation 1 for recording to external drives, initial setup, software updates and software control via Video Assist UtilityStorage media: -1UHS-II SD card for Ultra HD, compatible with regular SD for HD recording. Generation1 USB Type C 3.1 for recording to external hard drives.Storage Media Type: -SD SDXC UHS-II,SDXC UHS-I and SDHC UHS-IS Controls: -Recorder Controls: Built-in Blackmagic OS capacitive LCD touchscreen for onscreen control of setup and navigation menus -'No external controls.
