ASUS TUF GAMING Z790-PLUS D4
LGA 1700, Intel Z790, ATX5 items in stock
Product details

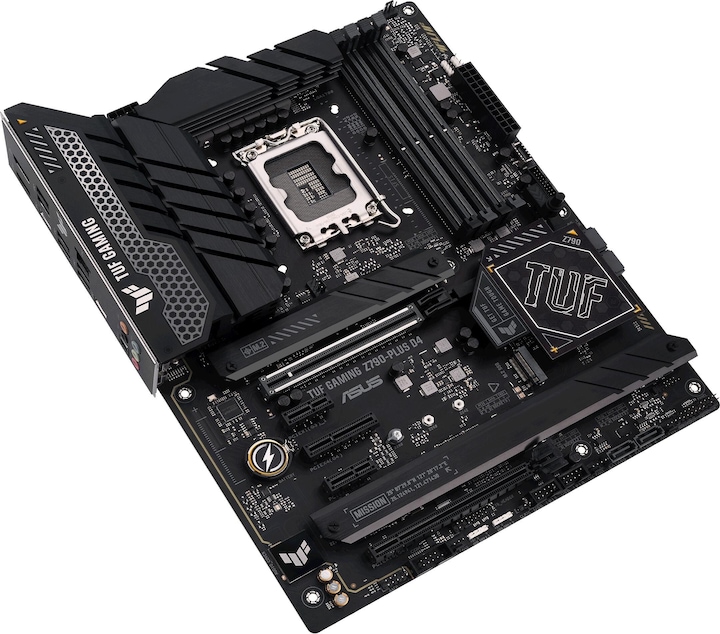

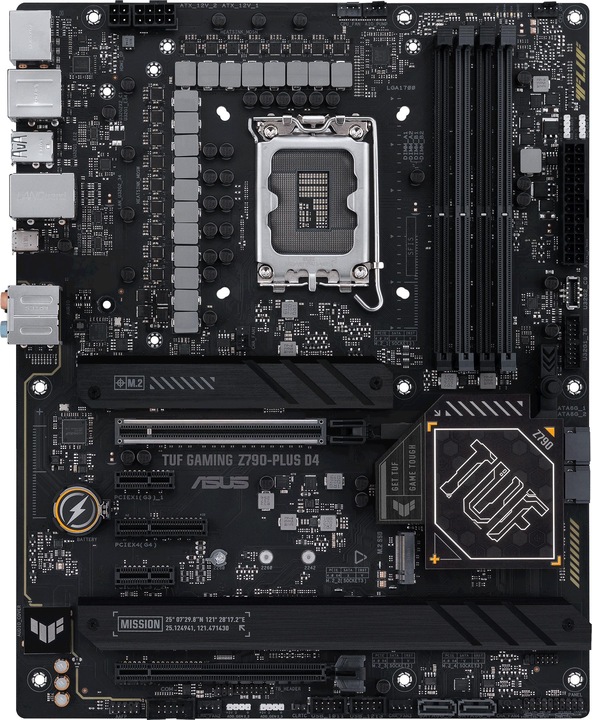

ASUS TUF Gaming Z790-Plus D4

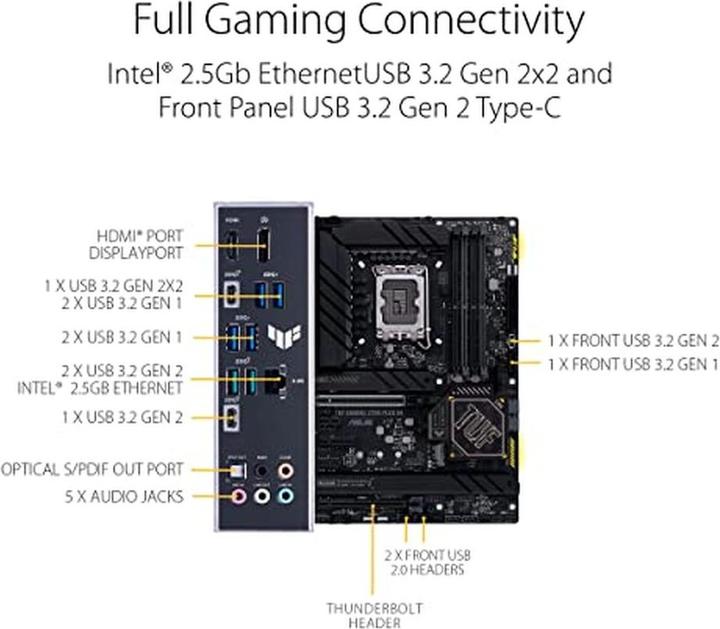

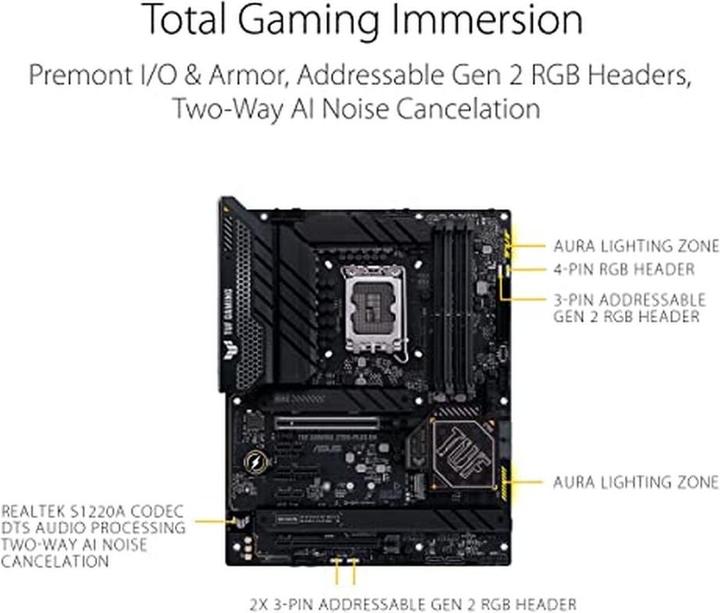

Intel Z790 (LGA1700) ATX Gaming motherboard, 16+1 DrMOS power stages, PCIe 5.0, DDR4 memory, four M.2 slots, Intel 2.5 Gb Ethernet, HDMI, DisplayPort, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 2 Type C, SATA 6 Gbps, Thunderbolt 4 header, and Aura Sync RGB lighting.
The TUF Gaming Z790-Plus D4 combines all the essential elements of the latest Intel processors with gaming-ready features and proven durability. With military-grade components, an enhanced power solution, and a comprehensive cooling system, this motherboard exceeds all expectations and delivers solid performance for marathon gaming sessions. TUF Gaming motherboards also undergo rigorous durability testing to ensure they can withstand conditions where others might fail. Aesthetically, this model features an embossed nameplate and honeycomb design elements that emphasize reliability.
Processor family | Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen, Pentium |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (4x) |
Mainboard features | Front panel audio connector |
Item number | 22514060 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1CQ0-M0EAY0 |
Release date | 22.9.2022 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z790 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i9 12th Gen, Core i9 13th Gen, Pentium |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 |
Max. RAM OC | 5333 MHz |
Supported memory speed | 2666 MHz, 4000 MHz, 4400 MHz, 4800 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort |
Video connection version | HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek S1220A |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm Line In (1x), Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 1 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 24-pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Cables supplied: SATA, User manual |
Length | 305 mm |
Width | 244 mm |
Height | 49 mm |
Weight | 1330 g |
Length | 34.60 cm |
Width | 28 cm |
Height | 7.50 cm |
Weight | 1.87 kg |
