ASUS TUF GAMING B560M-PLUS WIFI
AM5, AMD B650M, mATXPrice in EUR including VAT, free shipping
Delivered Tue, 29.4.
8 items in stock
8 items in stock
Product details

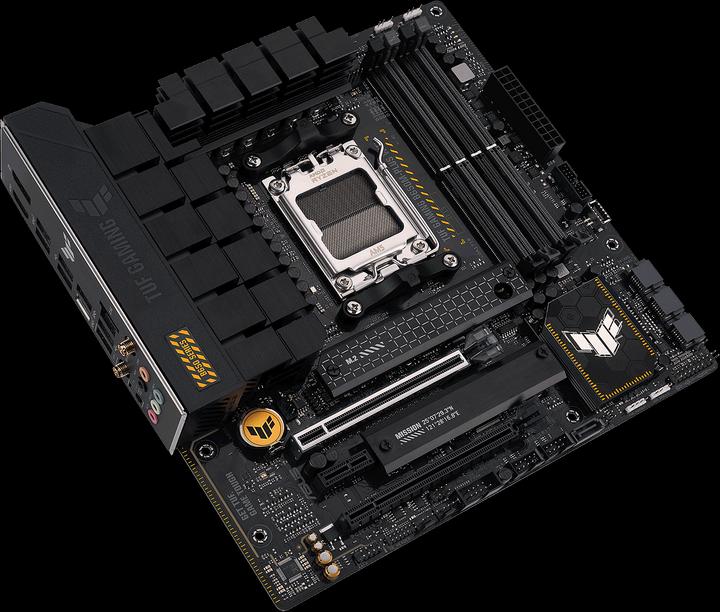

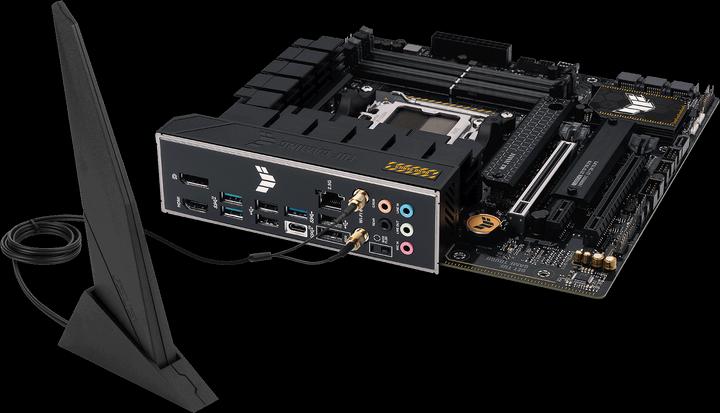

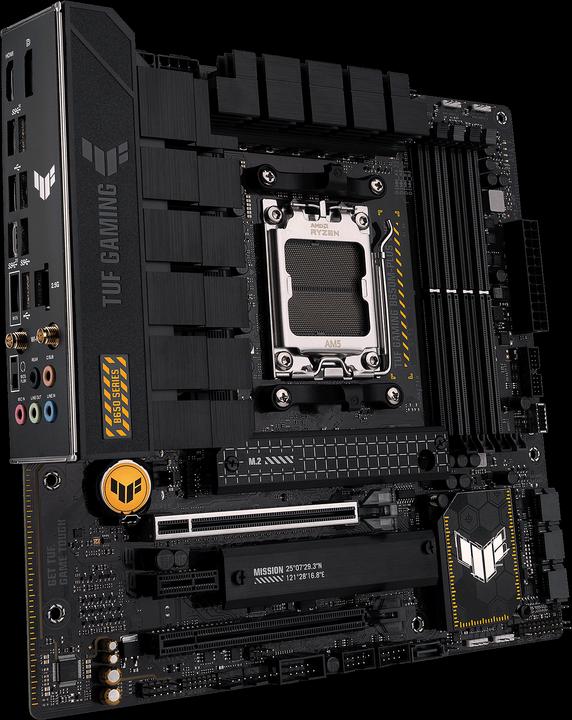

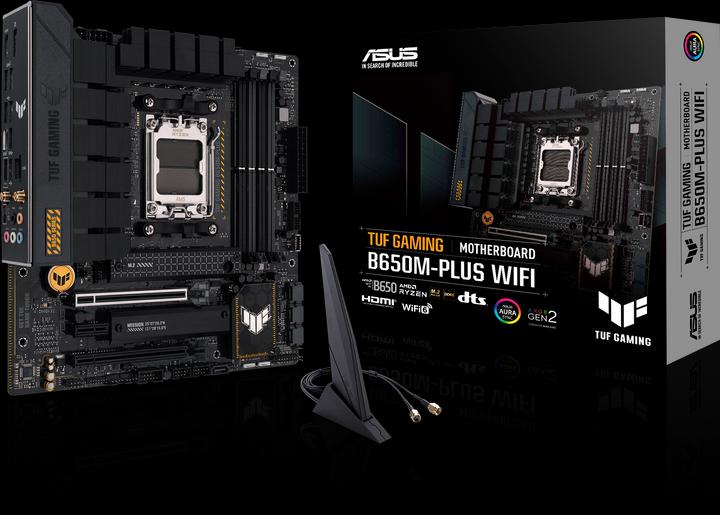

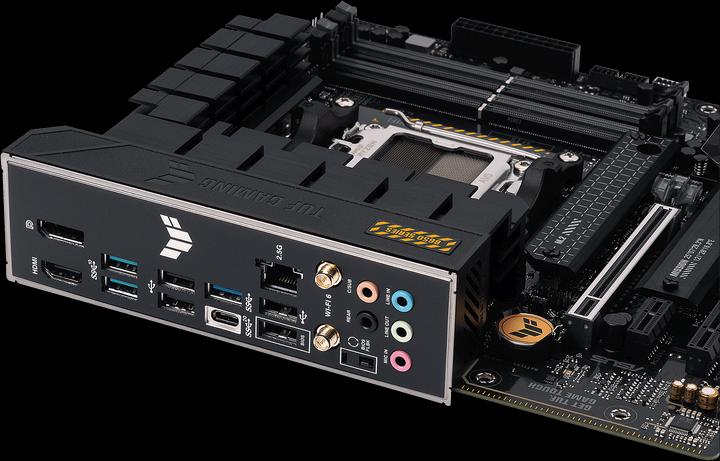

The ASUS TUF Gaming B650M-Plus WIFI combines all the essential elements of the latest AM5 socket for AMD Ryzen desktop processors with gaming-grade functions and proven durability. Equipped with military-grade components, an enhanced power solution and a comprehensive cooling system, this motherboard exceeds expectations with rock-solid and stable performance for marathon gaming. TUF Gaming motherboards also undergo rigorous endurance testing to ensure they perform in conditions where others might fail. Aesthetically, this model features rugged black and geometric design elements that reflect the reliability and stability of the TUF Gaming series. This platform offers the performance and connectivity that advanced AI PC applications require.
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, COM Port Header, RGB header, Thunderbolt header |
Item number | 22605351 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1BF0-M0EAY0 |
Release date | 22.9.2022 |
Form factor | Micro ATX (mATX) |
Socket | AM5 |
Chipset | AMD B650M |
Mainboard features | Clear CMOS Button, COM Port Header, RGB header, Thunderbolt header |
Operating system compatibility | Windows, Windows 10, Windows 10 Pro, Windows 11 Home, Windows 11 Pro |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Processor family | Ryzen 7th Gen, Ryzen 8th Gen, Ryzen 9th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 |
Max. RAM OC | 7600 MHz |
Supported memory speed | 4800 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz |
Memory type | DDR5 RAM |
RAM buffer | On-Die ECC, Unbuffered |

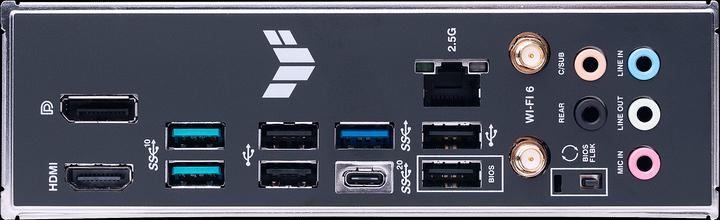

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Max. port speed | 2.50 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x) |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 6 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 2 (2x), USB-A 3.2 Gen 2 (3x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 x Serial ATA cable |
Length | 244 mm |
Width | 244 mm |
Height | 275 mm |
Weight | 1700 g |
Length | 28.30 cm |
Width | 27.80 cm |
Height | 7.50 cm |
Weight | 1.61 kg |
Product Safety |
Specifications may include unverified machine translations.
