Product details

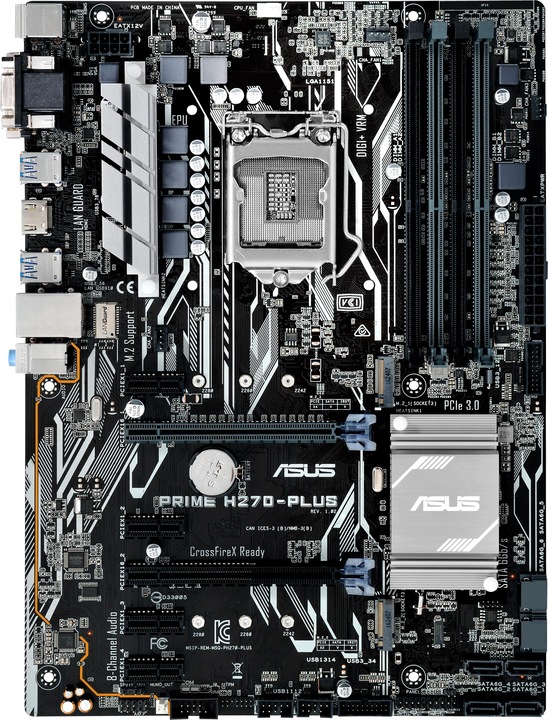

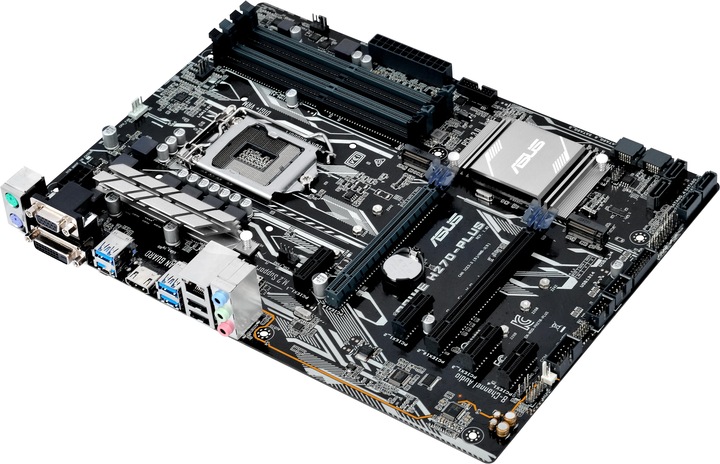

The ASUS PRIME H270-PLUS motherboard provides a reliable foundation for high-performance PC systems. It is designed for the 7th generation of Intel Core processors and supports a wide range of components, making it an ideal choice for users looking to build a custom system. With a maximum RAM capacity of 64 GB and support for DDR4 memory with speeds of up to 2133 MHz, this motherboard delivers impressive performance for various applications, from gaming to creative work. The integrated Fan Xpert 2+ technology ensures optimized cooling by intelligently adjusting fan speeds according to temperature, resulting in quiet operation. Additionally, the motherboard offers a variety of connectivity options, including USB 3.0 and Gigabit Ethernet, to ensure fast data transfer and network connectivity. The high quality of the components and extensive testing guarantee long-term stability and compatibility.
- Support for up to 64 GB of DDR4 RAM with speeds up to 2133 MHz
- Optimized cooling through Fan Xpert 2+ for quiet operation
- Compatibility with over 1,000 components and devices
- Expansion options through multiple PCI Express slots
- Integrated UEFI BIOS for easy system configuration.
Processor family | Core i3 7th Gen, Core i5 7th Gen, Core i7 7th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Clear CMOS Button |
Item number | 6067603 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0S90-M0EAY0 |
Release date | 5.1.2017 |
Form factor | ATX |
Socket | LGA 1151 |
Chipset | Intel H270 |
Mainboard features | Clear CMOS Button |
BIOS type | UEFI AMI |
Processor family | Core i3 7th Gen, Core i5 7th Gen, Core i7 7th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133, DDR4-2400 |
Supported memory speed | 2133 MHz, 2400 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | VGA (1x) |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC887 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x) |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x1 (3x), PCI Express x1 (4x), PCI Express x4 (1x) |
Number of fan connector | 4 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | S-ATA cable, User manual |
Length | 305 mm |
Width | 244 mm |
Length | 33.10 cm |
Width | 26.50 cm |
Height | 5.50 cm |
Weight | 1.02 kg |
Product Safety |
Specifications may include unverified machine translations.
