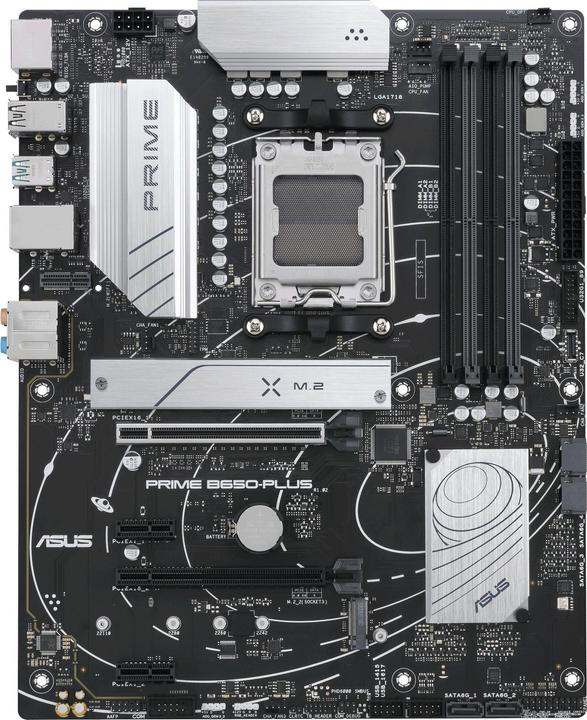

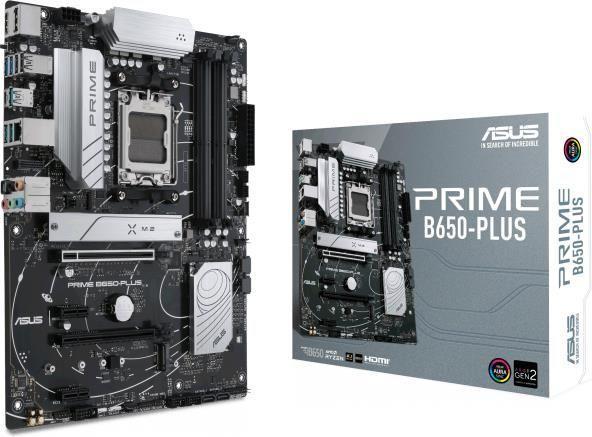

ASUS PRIME B650-PLUS

AM5, AMD B650, ATX
Price in EUR including VAT
17Ratings
Delivered Wed, 9.4.
More than 10 items in stock
PayPal, Klarna and Credit Cards

Product details

ASUS Prime series motherboards are expertly engineered to unlock the full potential of AMD Ryzen 7000 series processors. With a robust power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME B650-PLUS offers users and PC home builders a range of performance optimizations via intuitive software and firmware features.

Key specifications

Processor family
Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
24-pin ATX power connector (1x), 4-pin ATX 12V (1x), 4-pin CPU (1x), 4-pin Molex (3x), 8-pin ATX 12V (1x)
Mainboard features
Clear CMOS Button, COM Port Header, RGB header, S/PDIF header, Thunderbolt header
Item number
22605358

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
PRIME B650-PLUS
Release date
22.9.2022
Sales rank in Category Motherboards
12 of 844

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD B650
Mainboard features
Clear CMOS Button, COM Port Header, RGB header, S/PDIF header, Thunderbolt header
Operating system compatibility
Windows 10
BIOS type
UEFI AMI

Processor

Processor family
Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR5
Max. RAM OC
6400 MHz
Supported memory speed
5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz
Memory type
DDR5 RAM
RAM buffer
Unbuffered

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek 2.5GbE LAN
Max. port speed
2.50 Gbit/s

Audio

Chip
High Definition Audio
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x), Optical TOSLINK (1x)

Data storage

RAID configuration
0, 1, 10

Internal interfaces

Internal connection options
24-pin ATX power connector (1x), 4-pin ATX 12V (1x), 4-pin CPU (1x), 4-pin Molex (3x), 8-pin ATX 12V (1x)
Expansion slot
PCI Express x1 (2x)
PCI express version (max.)
4
Number of fan connector
3

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 3.2 Gen 2 (4x)
Peripheral connections
USB 2.0 Type-A (2x), USB 3.2 Gen 1 (2x), USB 3.2 Gen 2 (4x), USB Type-C (1x)

Power supply

Power connectors
20+8 pin ATX

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
SATA, Sata Cables

Product dimensions

Length
305 mm
Width
305 mm
Height
345 mm
Weight
1600 g

Package dimensions

Length
35 cm
Width
27 cm
Height
7 cm
Weight
1.58 kg
